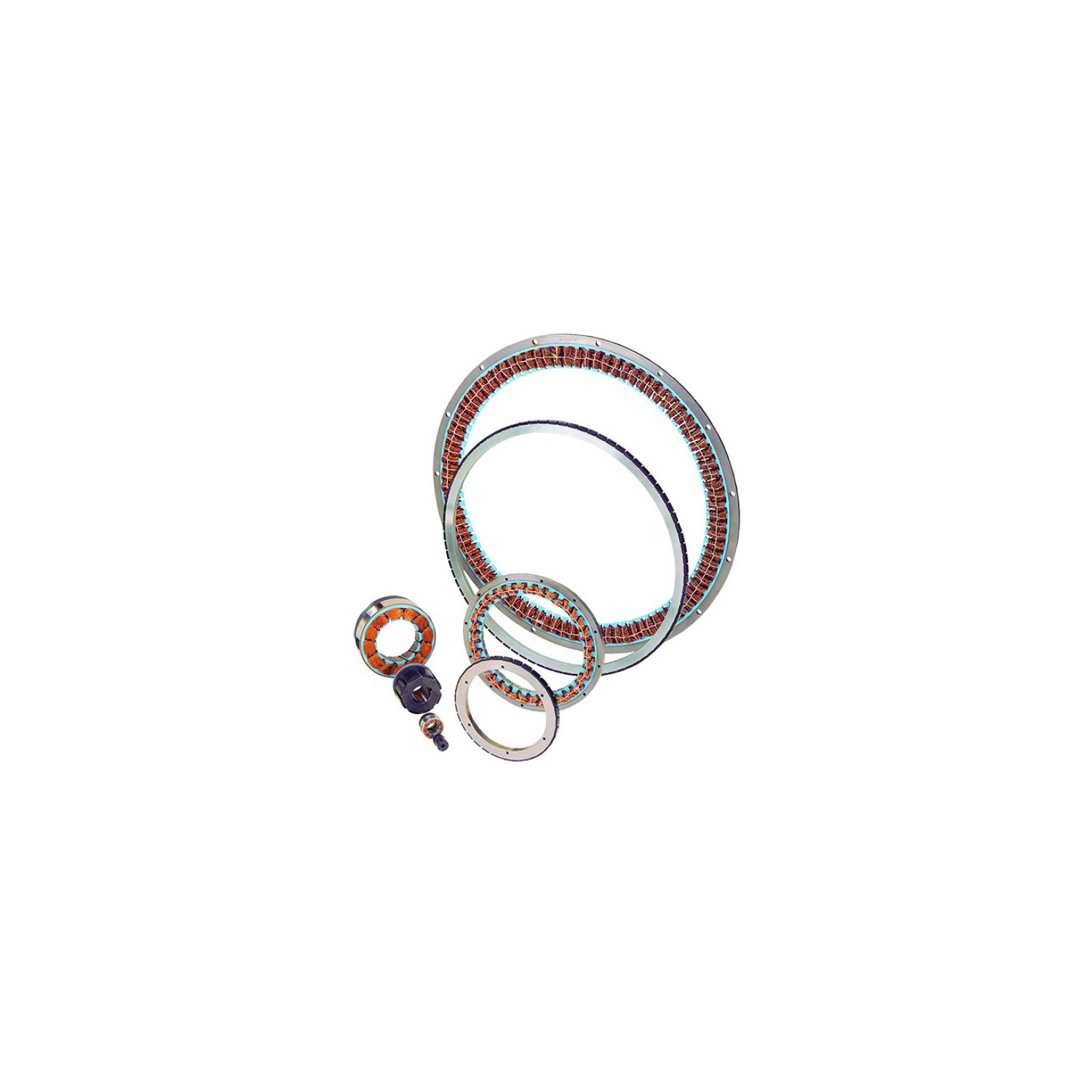

Allied Motion Megaflux Frameless Direct-Drive Torque Motors
Vendor: Allied Motion
Product: Megaflux MF Series
Megaflux is a high-torque-density family of frameless brushless direct-drive torque motors with 12 stator frame diameters from 60 to 792 mm and five stack lengths each; continuous stall torque spans 0.29-1,875 N·m with 48/150/300 VDC WYE windings; computer-optimized for maximum torque density and minimal cogging, the large through-bore passes cabling, piping or optical beams and the motors integrate directly into mechanisms, eliminating couplings and gear backlash for robot joints, gimbals and precision rotary tables.
| 叠高 | 每框号 5 种 |
| 框号 | 12 种（外径 60.4–792 mm） |
| 绕组 | WYE，三相引出 |
| 换向反馈 | Hall 传感器（MF0060–MF0127 标配） |
| 空载转速 | 17–7,098 RPM |
| 绕组电压 | 48 / 150 / 300 V DC |
| 齿槽转矩 | 低（MF0060 ≤0.032 N·m） |
| 连续堵转转矩 | 0.29–1,875 N·m |
