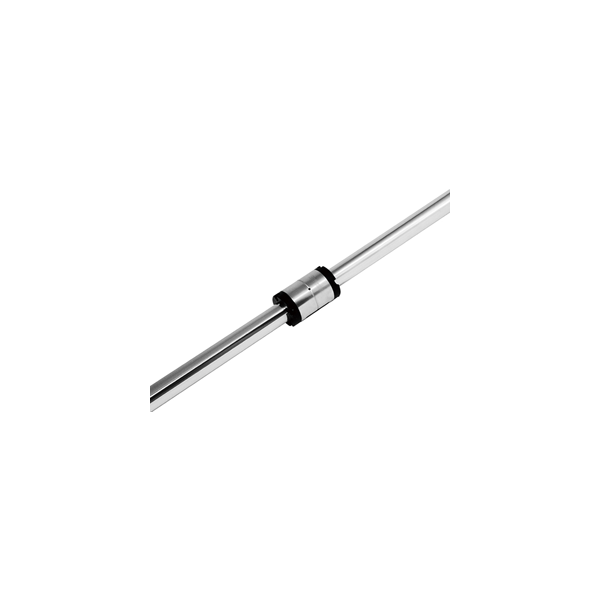

BSP-TM-SLTS Ball Spline Shaft
Vendor: Anaheim Automation (USA)
Product: BSP-TM-SLTS-006-T2-N-P1-400
BSP-TM-SLTS ball spline, 6 mm shaft, 14 mm nut OD, 25 mm nut length, 400 mm shaft length.
| Nut OD (D) | 14 mm |
| Shaft Length | 400 mm |
| Nut Length (L) | 25 mm |
| Groove Depth (t) | 1.2 mm |
| Groove Width (b) | 2.5 mm |
| Shaft Diameter (d) | 6 mm |
| Flange Thickness (L1) | 10.5 mm |
