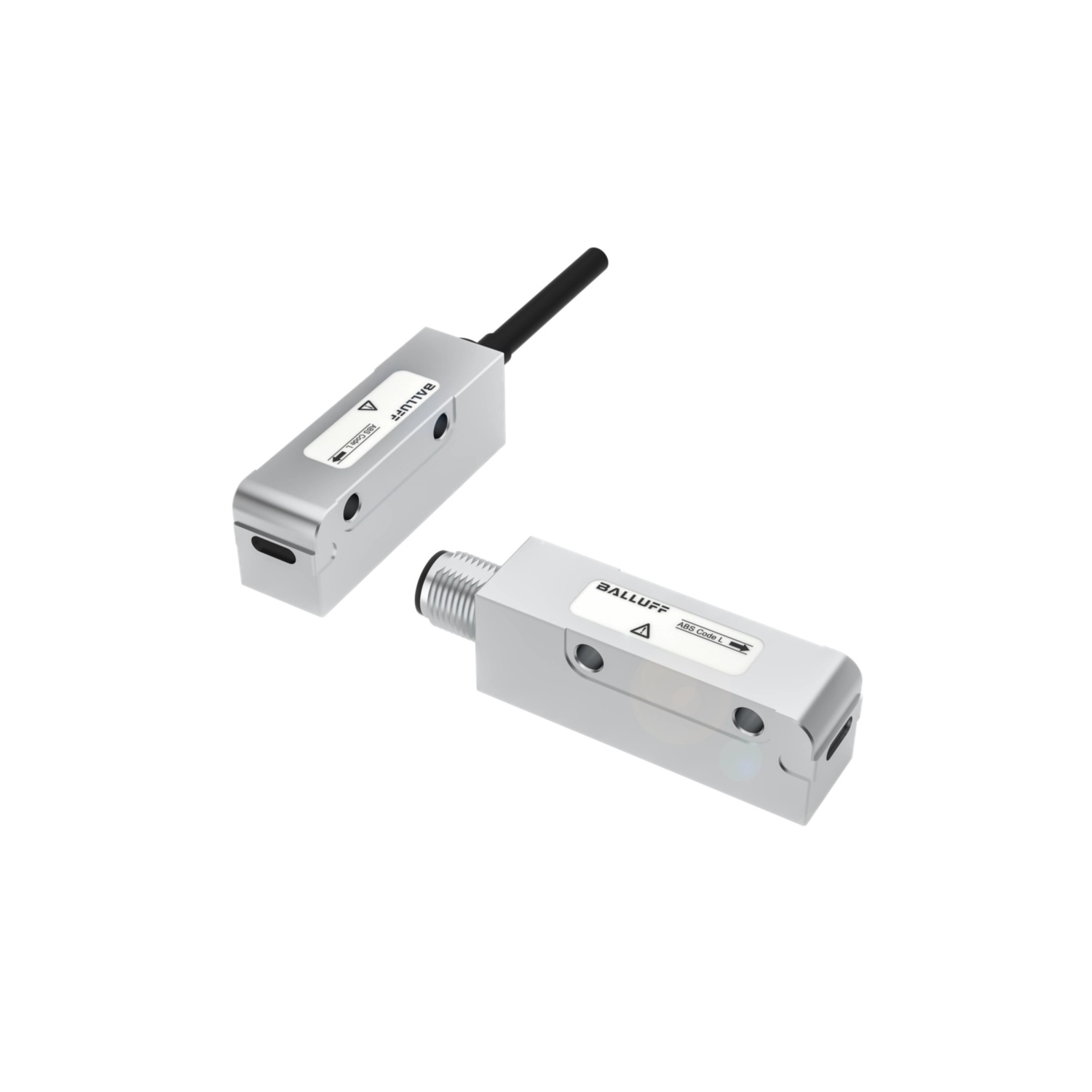

Balluff BML SL1 Magnetic Absolute Linear Encoder System
Vendor: Balluff
Product: BML SL1
The BML SL1 is a magnetically coded absolute linear measuring system delivering absolute position immediately at power-on with no reference run; up to 8.19 m measuring length, 1 µm resolution and ±15-100 µm system accuracy with a generous 1.3 mm read distance; IO-Link 1.1 with parameterization, diagnostics and condition monitoring, optional analog sin/cos real-time output plus BiSS C / SSI variants; IP67 in zinc die-cast/stainless housing for absolute position feedback in robot linear actuators and rotary tables.
| 供电 | 18–30 V DC |
| 外壳 | 锌压铸 + 不锈钢 |
| 接口 | IO-Link 1.1 / BiSS C / SSI / 模拟 sin/cos 1 Vpp |
| 分辨率 | 1 µm |
| 工作温度 | –20...+70 °C |
| 测量原理 | 磁编码绝对式 |
| 系统精度 | ±15...100 µm（取决于安装） |
| 读取间隙 | ≤1.3 mm |
| 防护等级 | IP67 |
| 最大测量长度 | 8.19 m |
