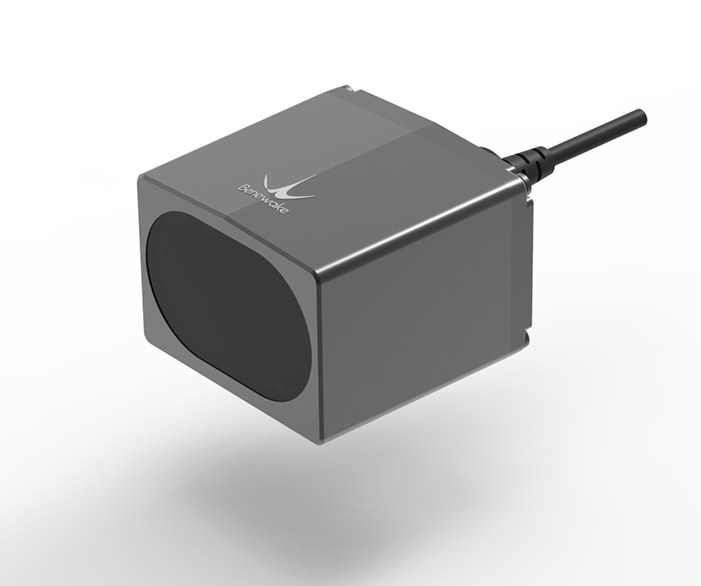

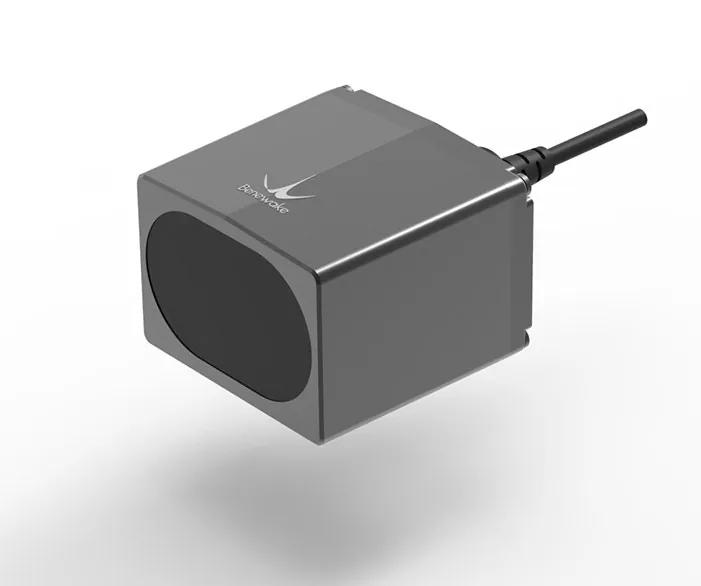

Benewake TF03 Long-Range Single-Point TOF LiDAR
Vendor: Benewake 北醒 (China)
Product: TF03-100/180百米防护激光雷达
The Benewake TF03 is a long-range single-point TOF LiDAR measuring up to 180 m with IP67 rating, up to 9800 Hz sampling, <=1 W power draw and 86 g weight. UART/CAN/RS-232/RS-485 interfaces suit UAV ranging, inspection robots and traffic monitoring.
| Power | ≤ 1 W |
| Range | 0.1 ~ 180 m |
| Weight | 86 ± 3 g |
| Frequency | 1 ~ 9800 Hz |
| Interface | UART、CAN、RS-232、RS-485 |
| Dimensions | 44 mm × 43 mm × 32 mm |
| Protection | IP67 |
