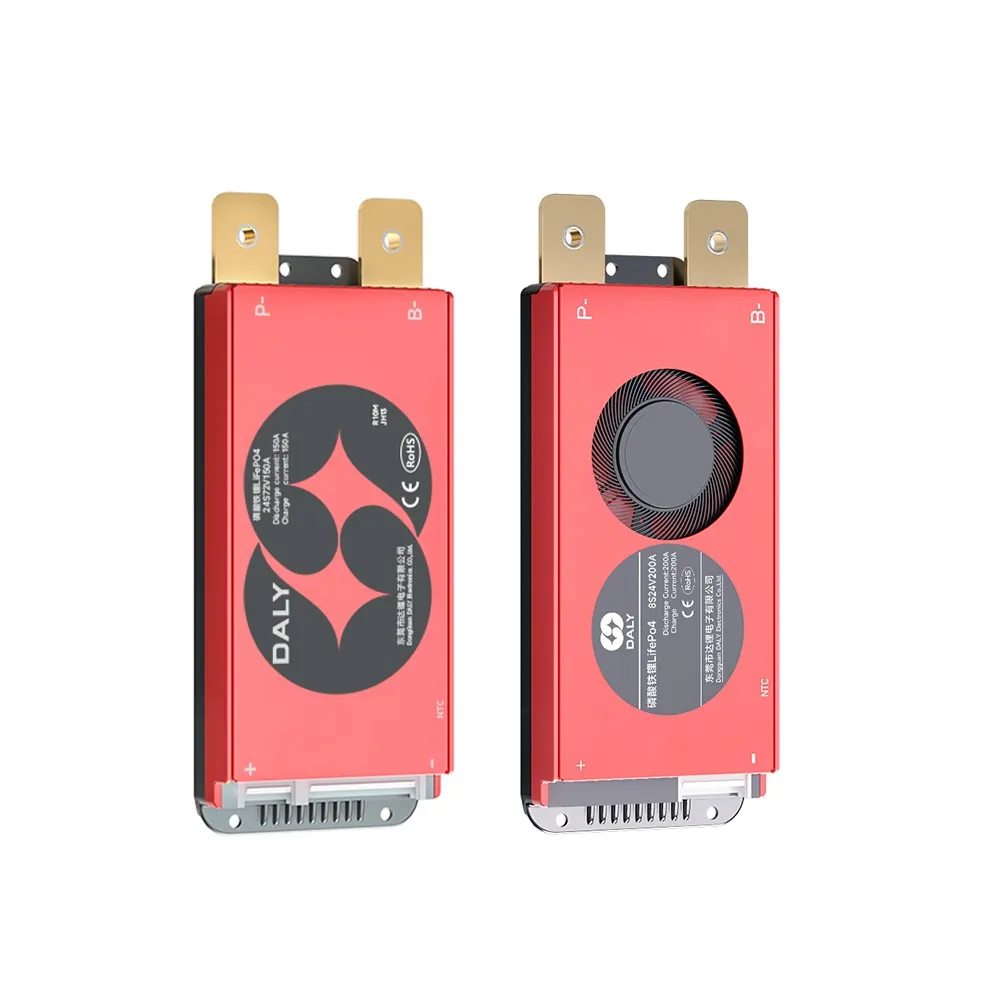

DALY M-Series Hardware Battery Protection Board (3-24S, 150A/200A)
Vendor: DALY Electronics (China)
The DALY M-Series is a hardware-only battery management system (protection board) for 3-24S lithium packs, offered in 150 A and 200 A continuous-discharge ratings and compatible with both NCM and LiFePO4 cells. Its thick-copper PCB plus packaged-MOS power stage, thermally conductive ABS potting and aluminum heatsink shells keep temperature rise low inside a compact 164 x 66 x 21 mm envelope, while the potted construction adds moisture, vibration and oxidation resistance for harsh duty cycles. Eight protection functions cover over-charge, over-discharge, over-current, short-circuit, over-temperature, ESD, water ingress and mechanical shock; an NTC sensor is standard and UART plus CAN/RS485 links are provided, with a Bluetooth module bundled. It fits prismatic, cylindrical and pouch packs used in aerial work platforms, marine energy storage, ATVs, cleaning machines, RVs, sightseeing cars, low-speed four-wheel EVs, golf carts and electric forklifts.
| Dimensions | 164 x 66 x 21 mm, tolerance +/-0.5 mm, identical outline for 150 A and 200 A |
| Applications | aerial platforms, marine ESS, ATV, cleaning machines, RV, sightseeing cars, low-speed 4-wheel EVs, golf carts, electric forklifts |
| Construction | thick-copper PCB + packaged MOS, aluminum heatsink shells, thermally conductive ABS potting, silicone output cables |
| Series Range | 3-24S (3~24 cells in series) |
| Communication | UART-1, CAN/RS485 5-pin, Bluetooth module bundled, NTC standard |
| Cell Chemistry | LiFePO4 / NCM (3.2 V / 3.7 V nominal per cell) |
| Charge Current | 100 A on 150 A models, 200 A on 200 A models |
| Package Contents | board x1, manual x1, B-/P- output cables x1, Bluetooth x1, sampling harness x1, NTC x1, CAN/485 5-pin cable x1 |
| Sampling Harness | 24 AWG, 300-450 mm |
| Mounting Hole Pitch | 142 mm / 44 mm / 15 mm |
| Continuous Discharge | 150 A or 200 A by model (e.g. LiFePO4 24S72V150A, LiFePO4 8S24V200A) |
| Protection Functions | 8: over-charge, over-discharge, over-current, short-circuit, over-temperature, ESD, waterproof, shock |
