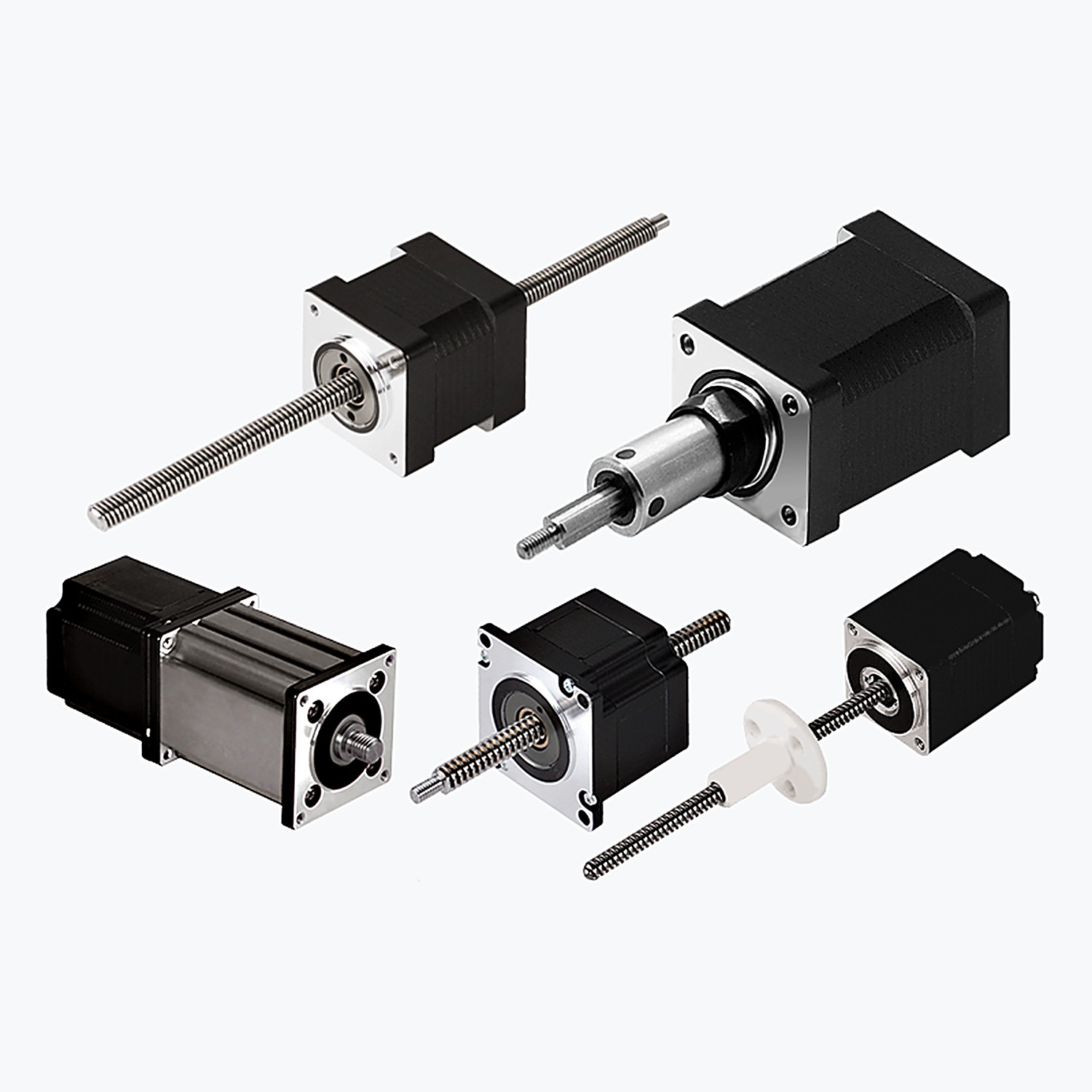

DINGS Lead Screw (Trapezoidal) Linear Actuator Series
Vendor: 鼎智科技 DINGS
Product: 滑动丝杆线性执行器系列（14-86）
DINGS lead screw linear actuators span eight frame sizes (14-86 mm) in four structures: external drive, through-shaft, C-type fixed-shaft cylinder style and K-type fixed shaft; 0.0015-0.127 mm/step resolution (0.3175-10.16 mm leads), max thrust 2400 N (28-series 150 N, 3x the 20-series); Class B insulation, -20 to 55°C; optional Teflon-coated screws (longer life, higher thrust), anti-backlash nuts, encoders and power-off brake (500k-cycle life, <60 dB); for medical, lab automation, semiconductor and factory automation.
| series | 14 / 20 / 28 / 35 / 42 / 57 / 60 / 86 mm |
| options | Teflon coating, anti-backlash nuts, encoder to 2000 resolution, brake 5.5 W >0.3 N·m <60 dB |
| max_thrust | 2400 N (28-series 150 N) |
| resolution | 0.0015 - 0.127 mm/step; leads 0.3175 - 10.16 mm |
| structures | external drive, through-shaft, C-type fixed shaft, K-type fixed shaft |
| environment | -20 to 55°C; insulation Class B |
| motor_example | 11-2216 2.4 V/1.6 A/1.5 Ω/1.3 mH, 173 g, 45 mm |
