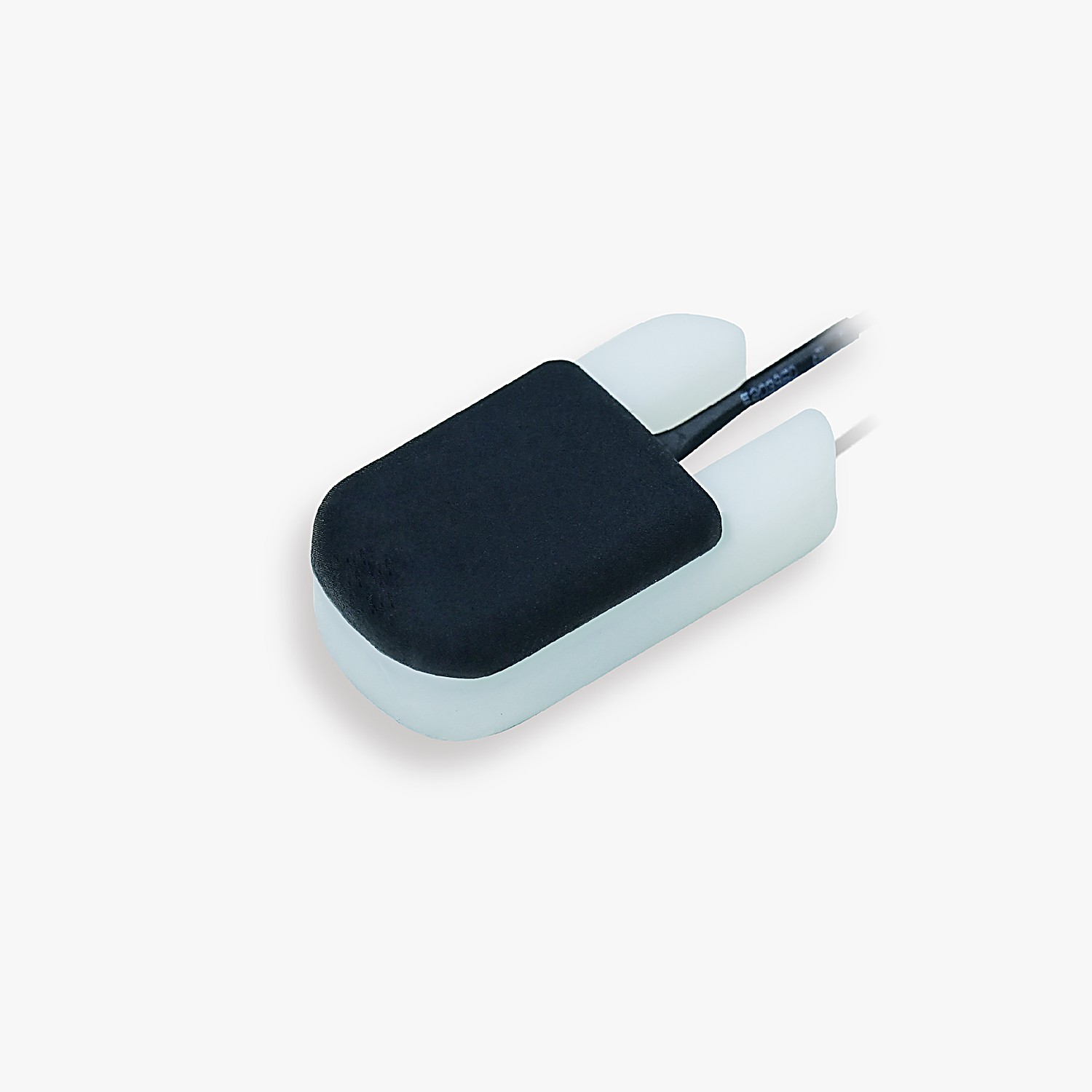

FLEXIBLE FOS-P300 Series Flexible Resistive Tactile Sensor
Vendor: 福莱新材 FLEXIBLE
Product: FOS-P300 系列柔性电阻式触觉传感器
Resistive tactile sensing system from FLEXIBLE (Zhejiang Fulai New Materials, SHA 605488): multimodal pressure/temperature/proximity/shear perception in an ultra-thin conformable film for fingers and palms. FOS-P300-3DF measures 0.1-20 N normal force at 5% FS with 0.01 N resolution and <0.1 mm spatial resolution, 0.3-10 N shear; trigger pressure <3 kPa to >1 MPa, <10% point consistency, 4-pin UART at 100-300 Hz for robot tactile feedback.
| form | 超薄柔性薄膜，即贴即用，适配复杂曲面 |
| sampling | 100–300 Hz |
| interface | 4 Pin（UART / SPI / I²C） |
| shear_3df | 0.3–10 N，精度：压力 5% FS / 角度 <10° |
| temp_drift | <0.5% FS/°C |
| consistency | 点位一致性 <10%；长期循环稳定性 <10% @ 50% FS |
| range_p300p | 0.5–30 N，10% FS（手掌大面积阵列） |
| range_p300s | 0.2–10 N，0.5–1% FS，空间 <1 mm（手指全曲面） |
| accuracy_3df | 5% FS |
| range_p300s_6df | 0.2–20 N，5–10% FS；剪切 0.5–10 N（六维） |
| force_resolution | 0.01 N |
| normal_range_3df | 0.1–20 N（FOS-P300-3DF 手指平面） |
| trigger_pressure | <3 kPa（微弱触碰）至 >1 MPa（剧烈撞击） |
| spatial_resolution_3df | <0.1 mm |
