Pittman E30 Series Miniature Incremental Encoders (200-2048 CPR)

Vendor: Haydon Kerk Pittman / AMETEK (USA)

Product: Pittman E30

Pittman E30 Series Miniature Incremental Encoders (200-2048 CPR)

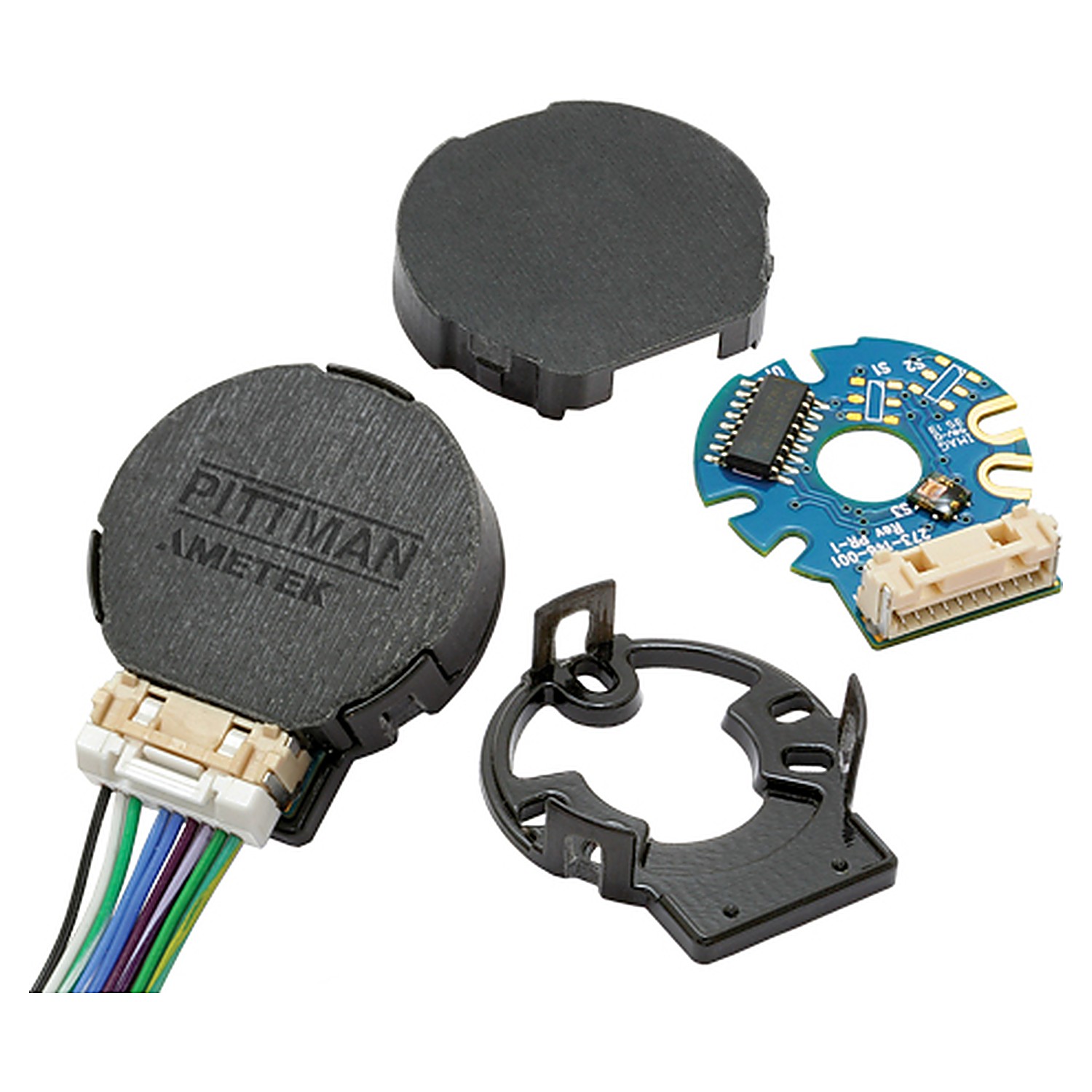

Haydon Kerk Pittman (AMETEK, USA) Pittman E30 is a miniature incremental optical encoder family: E30C offers 200-500 CPR and E30D 500-2048 CPR with 2-channel quadrature TTL outputs, Z-index on E30D and optional differential line-driver; powered from 4.5-5.5 VDC at ≤20 mA with response to 220 kHz, -20 to +85 °C operation and 5.6 g mass, mounting directly on Pittman brushed/brushless motors for closed-loop speed or position control in robot joints and precision motion.

Mass	5.6 g
Output	2-channel quadrature TTL, optional index & differential LD
Resolution	200-2048 CPR (E30C 200-500 / E30D 500-2048)
Max Frequency	up to 220 kHz
Supply Current	≤20 mA
Supply Voltage	4.5-5.5 VDC
Operating Temperature	-20 to +85 °C

Incremental encoders Pittman Position Sensor Motion Feedback

https://www.haydonkerkpittman.com/products/encoders/e30-series
