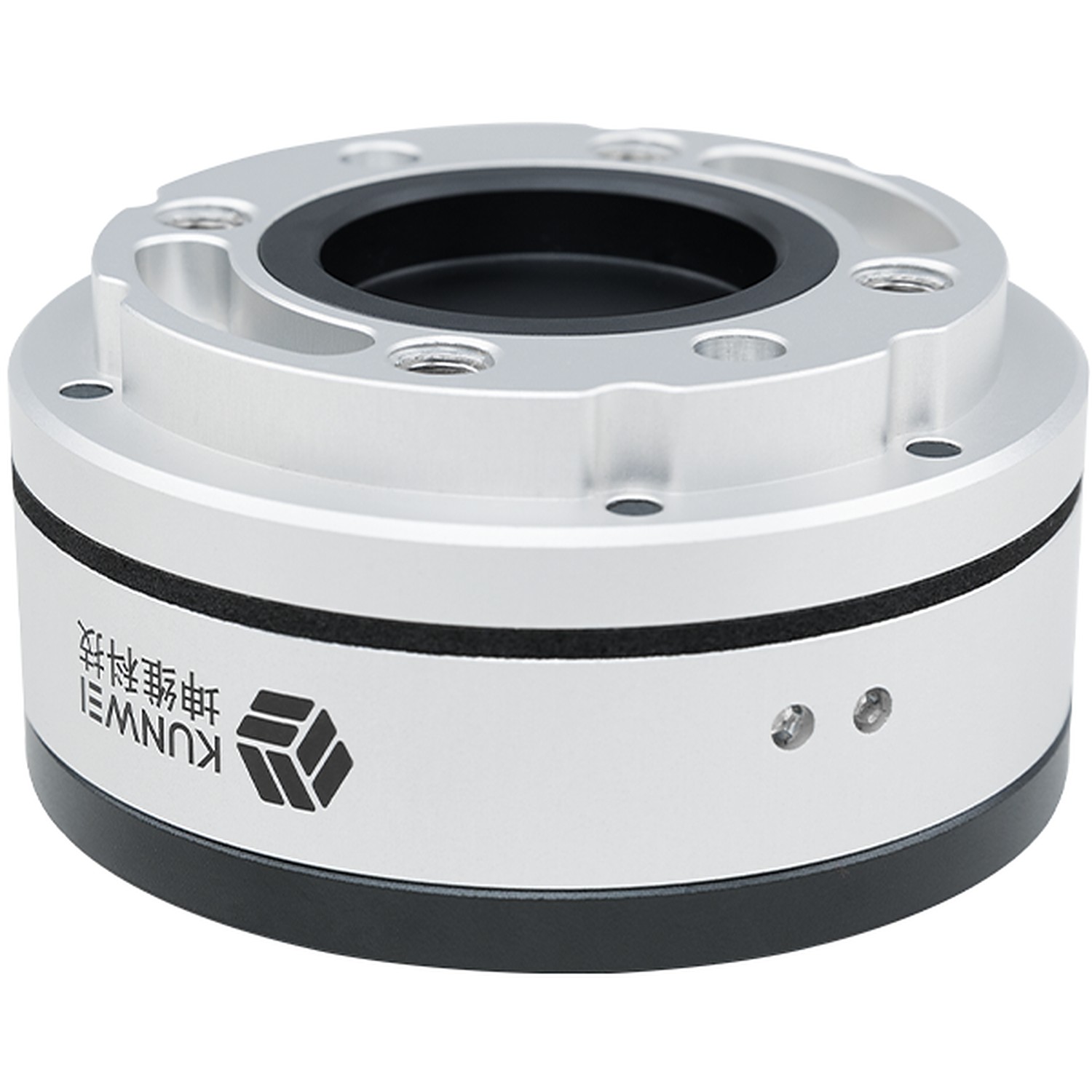

Kunwei KWR75 Series 6-Axis Force/Torque Sensor

Vendor: Kunwei

Product: KWR75

Kunwei KWR75 Series 6-Axis Force/Torque Sensor

The Kunwei KWR75 series is a 75 mm-diameter general-purpose 6-axis force/torque sensor in aerospace-grade alloy with embedded high-precision smart electronics; eight range versions (Fz 30-3000 N, Mz 1.5-45 N·m) calibrated via six-axis combined calibration deliver 0.5%FS accuracy, 0.1%FS repeatability and 0.03%FS resolution, with 300%FS overload, IP64 protection and only 0.08-1.12 kg weight; full industrial-protocol support for robot joints, arm end-effectors and test rigs.

Height	31.5-33.5 mm
Weight	0.08-1.12 kg
Accuracy	0.5% F.S.
Diameter	75 mm
Material	aluminum alloy / alloy steel
Overload	300% F.S.
Protection	IP64
Resolution	0.03% F.S.
Repeatability	0.1% F.S.
Rated Range Fz	30-3000 N
Rated Range Mz	1.5-45 N·m

Sensors Six-Dimensional Force Torque sensors Kunwei Robot joints

https://www.kunweitech.com/products/866.html
