FM2 High-Density Frameless Torque Motor
Vendor: 雷赛智能 Leadshine (China)
Product: FM2系列 高密度型无框力矩电机

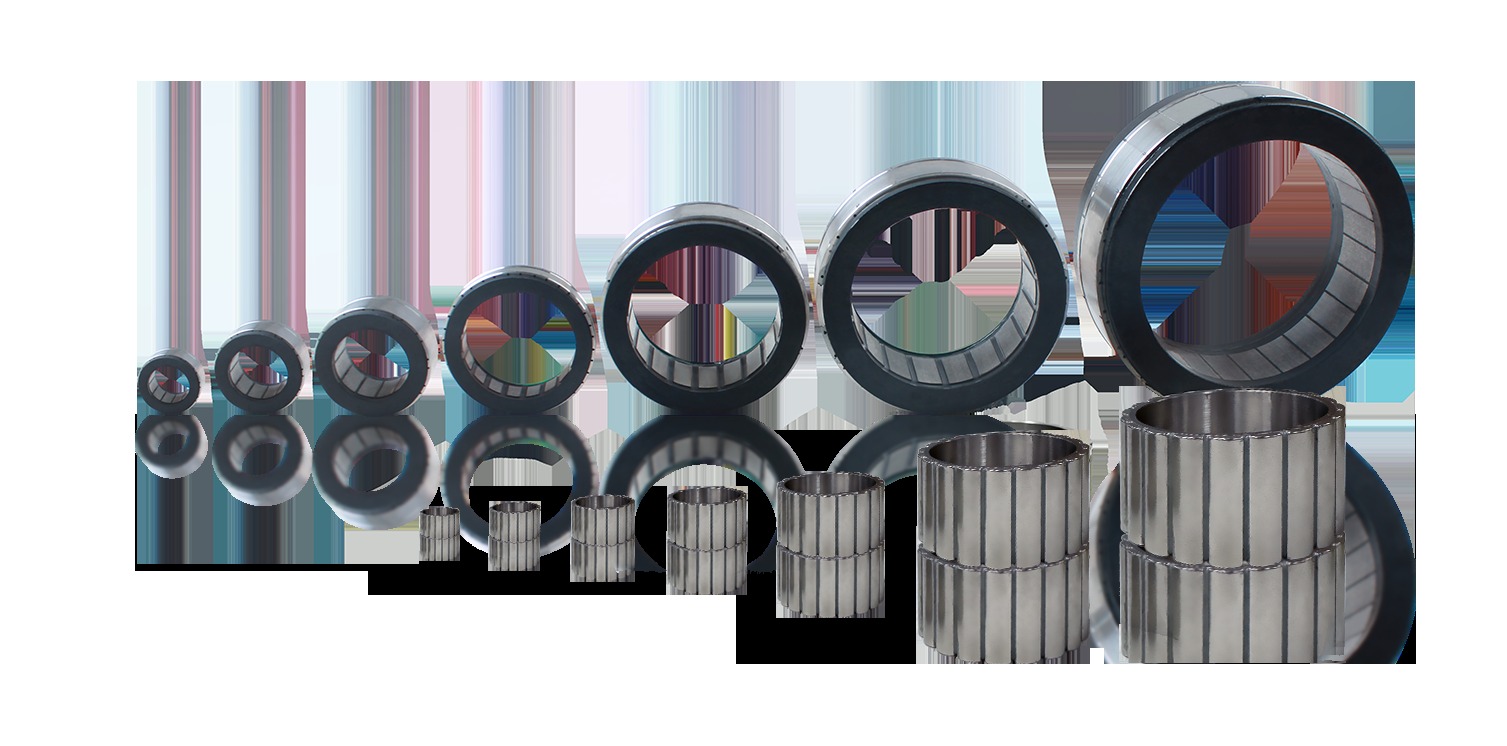

FM2 series high-density frameless torque motors in eight standard frame sizes from 28 to 127 mm. 48 VDC, up to 6500 rpm, high torque density for direct-drive robot joints; custom sizes and electrical parameters supported.
| 重量 | 0.089 KG |
| 极对数 | 10 P |
| 最大电流 | 18.8 A |
| 最大转矩 | 0.99 N·m |
| 最高转速 | 6500 rpm |
| 框架尺寸 | 28 / 43 / 50 / 60 / 70 / 85 / 104 / 127 mm |
| 转矩常数 | 0.067 Nm/A |
| 额定功率 | 190 W |
| 额定电压 | 48 VDC |
| 额定电流 | 6.06 A |
| 额定转矩 | 0.33 N·m |
| 额定转速 | 5500 rpm |
| 定子铁芯外径 | 50 mm |
