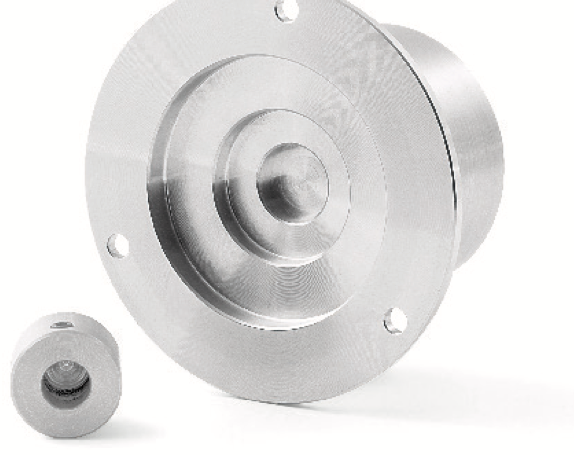

Lika MSK36 Shaftless Magnetic Bearingless Absolute Encoder
Vendor: Lika Electronic
Product: MSK36 无轴磁式绝对值无轴承编码器
The MSK36 is Lika's (Italy) shaftless, bearingless magnetic absolute encoder with contactless sensing and sealed-circuit option up to IP68, SSI output (13-clock, max 1 MHz) at 8192 steps/rev with ±1° accuracy; +10-30 Vdc supply at ≤30 mA, Ø6/8/10 mm hollow shaft, 12,000 rpm max, 250 g (6 ms) shock / 10 g (5-2,000 Hz) vibration endurance, -20 to +85°C at ~50 g, with electronic zero-setting for absolute position feedback in wet and dusty motor/joint environments.
| 供电 | +10 ~ +30 Vdc，≤30 mA |
| 类型 | 无轴/无轴承 磁式绝对值编码器 |
| 精度 | ±1° |
| 质量 | 约 50 g |
| 输出 | SSI（13 clock，max 1 MHz） |
| 防护 | IP67（可选 IP68 密封电路） |
| 分辨率 | 8192 步/圈（13 bit） |
| 空心轴 | Ø6 / 8 / 10 mm |
| 工作温度 | -20 ~ +85 °C |
| 最高转速 | 12,000 rpm |
| 耐冲击/振动 | 250 g (6 ms) / 10 g (5-2,000 Hz) |
