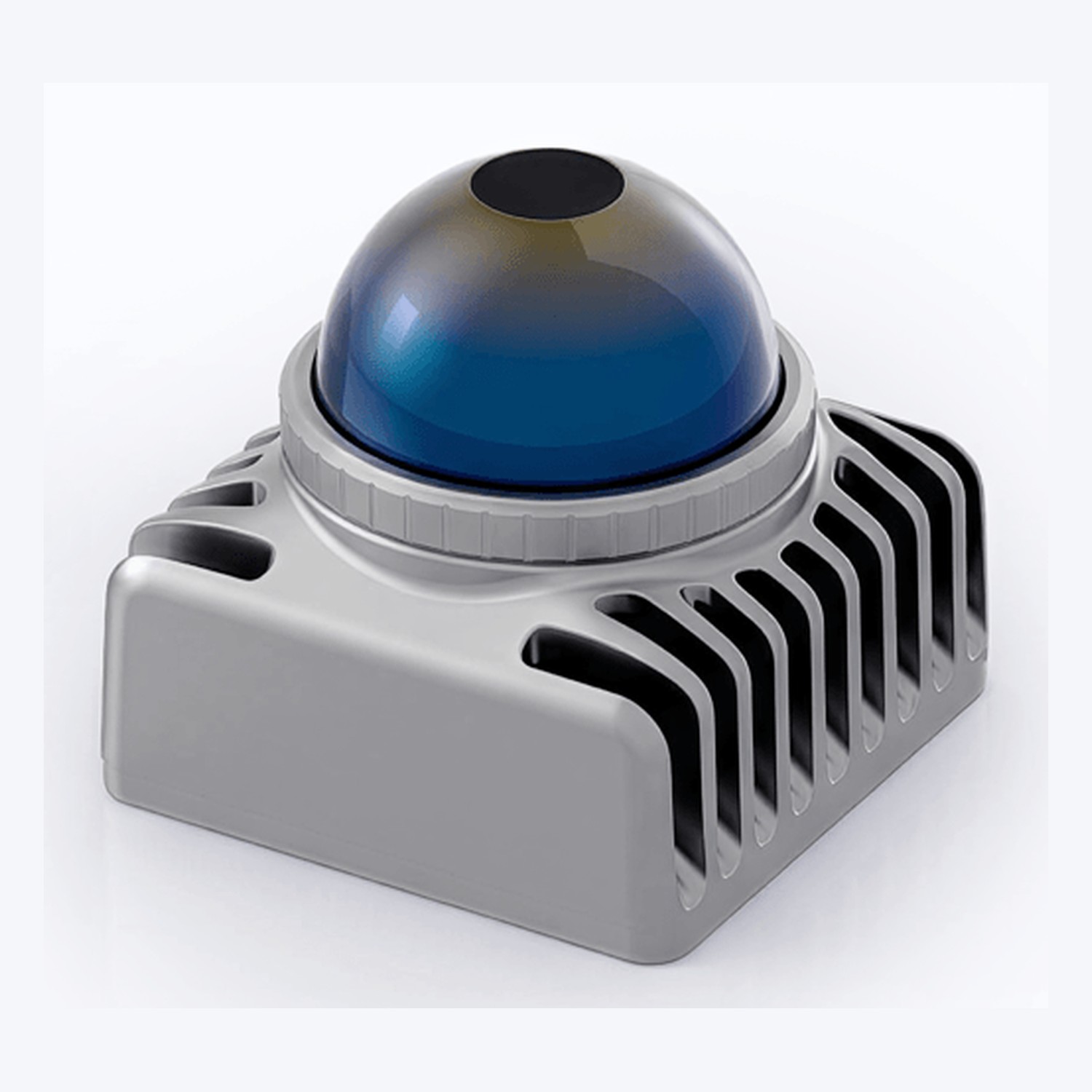

Livox Mid-360S Hybrid Solid-State LiDAR
Vendor: Livox (DJI)
Product: Mid-360S
Livox Mid-360S, the cost-optimized next-generation 360° hybrid solid-state LiDAR for mobile robots: same 65×65×60 mm / 265 g form factor as Mid-360, 905 nm Class 1, 360° H x (-7° to 52°) V FOV, range upgraded from 40-70 m to 38-100 m @10% reflectivity at WRC 2026, with sharper mapping edges, 0.1 m blind zone, ≤2 cm @10 m / ≤4 cm @0.2 m precision, <0.15° angular precision, 200k pts/s, IP67, 6.5 W, built-in ICM40609 IMU and active anti-interference; for indoor/outdoor service robots, autonomous forklifts and inspection platforms.
| Fov | 360° H × (-7° to 52°) V |
| Imu | Built-in ICM40609 |
| Laser | 905 nm, Class 1 (IEC 60825-1) |
| Power | 6.5 W (9-27 V DC) |
| Weight | 265 g |
| Blind Zone | 0.1 m |
| Dimensions | 65×65×60 mm |
| Frame Rate | 10 Hz |
| Point Rate | 200,000 pts/s (first return) |
| Detection Range | 38–100 m（WRC 2026 40~70 m 38~100 m @10% reflectivity） |
| Mapping Quality | （WRC 2026 ） |
| Range Precision | ≤2 cm @10 m, ≤4 cm @0.2 m (1σ) |
| Angular Precision | <0.15° (1σ) |
| Ingress Protection | IP67 |
