maxon EC frameless DT Frameless Torque Motor Series
Vendor: maxon group (Switzerland)
Product: EC frameless DT 系列无框力矩电机

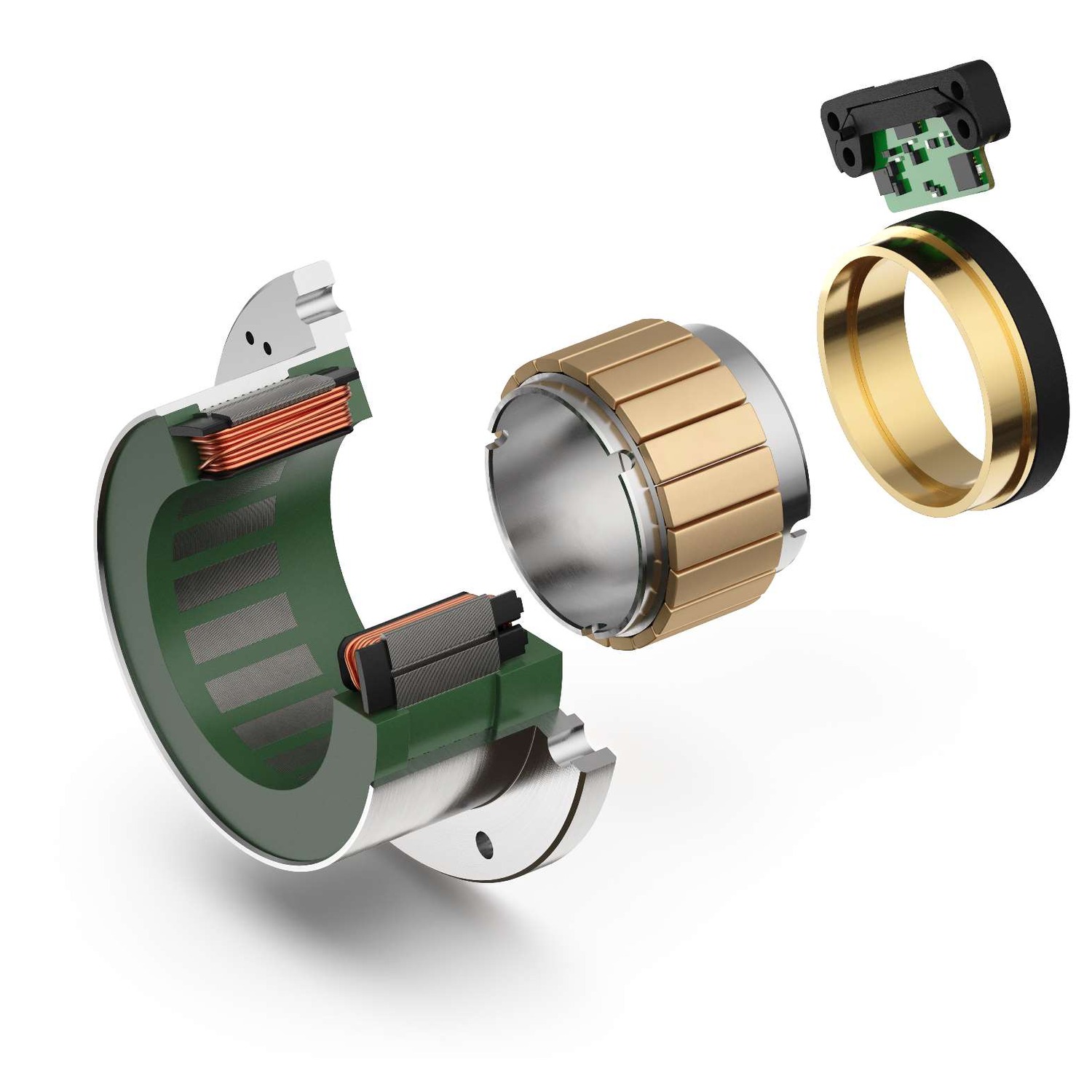

maxon (Switzerland) is a world-leading precision drive manufacturer. The EC frameless DT (Dynamic Torque) family is an inner-rotor frameless torque motor kit (stator + rotor) with large hollow shaft, low-voltage DC and full potting: four frames DT38–DT85 (42–90 mm OD), 0.13–3.42 N·m continuous torque with heatsink, up to 9.63 N·m peak, 3,000–15,000 rpm max speed, cogging as low as 0.5 mNm, torque density up to 4.5 N·m/kg, -40 to +100 °C. Optional integrated TSX MAG incremental or TSX RIO 19-bit absolute encoder; pairs with maxon strain-wave/planetary gears and EPOS/ESCON controllers into High Precision/Efficiency Joints for humanoid and quadruped robots, cobots, surgical robots and exoskeletons, semiconductor handling, and aerospace actuators.
| frames | DT38 / DT50 / DT65 / DT85 (M/S/L) |
| options | TSX MAG incremental / TSX RIO 19-bit absolute encoder; strain-wave & planetary gears; EPOS (CANopen/EtherCAT) / ESCON |
| max speed | 3,000 – 15,000 rpm |
| DT85 M 48V | cont. 2,190 mNm @14.3 A; stall 11,500 mNm; 3,410 rpm no-load; 94% eff.; 134 mNm/A; 650 g·cm²; 741 g |
| temperature | -40 to +100 °C ambient, winding 155 °C |
| torque density | 2.0 – 4.5 N·m/kg |
| mass (integration) | 64 – 765 g |
| typ. cogging torque | 0.5 – 61 mNm |
| outer/inner diameter | 42/17 – 90/47 mm |
| peak torque (heatsink) | 0.36 – 9.63 N·m |
| continuous torque (heatsink) | 0.13 – 3.42 N·m |
