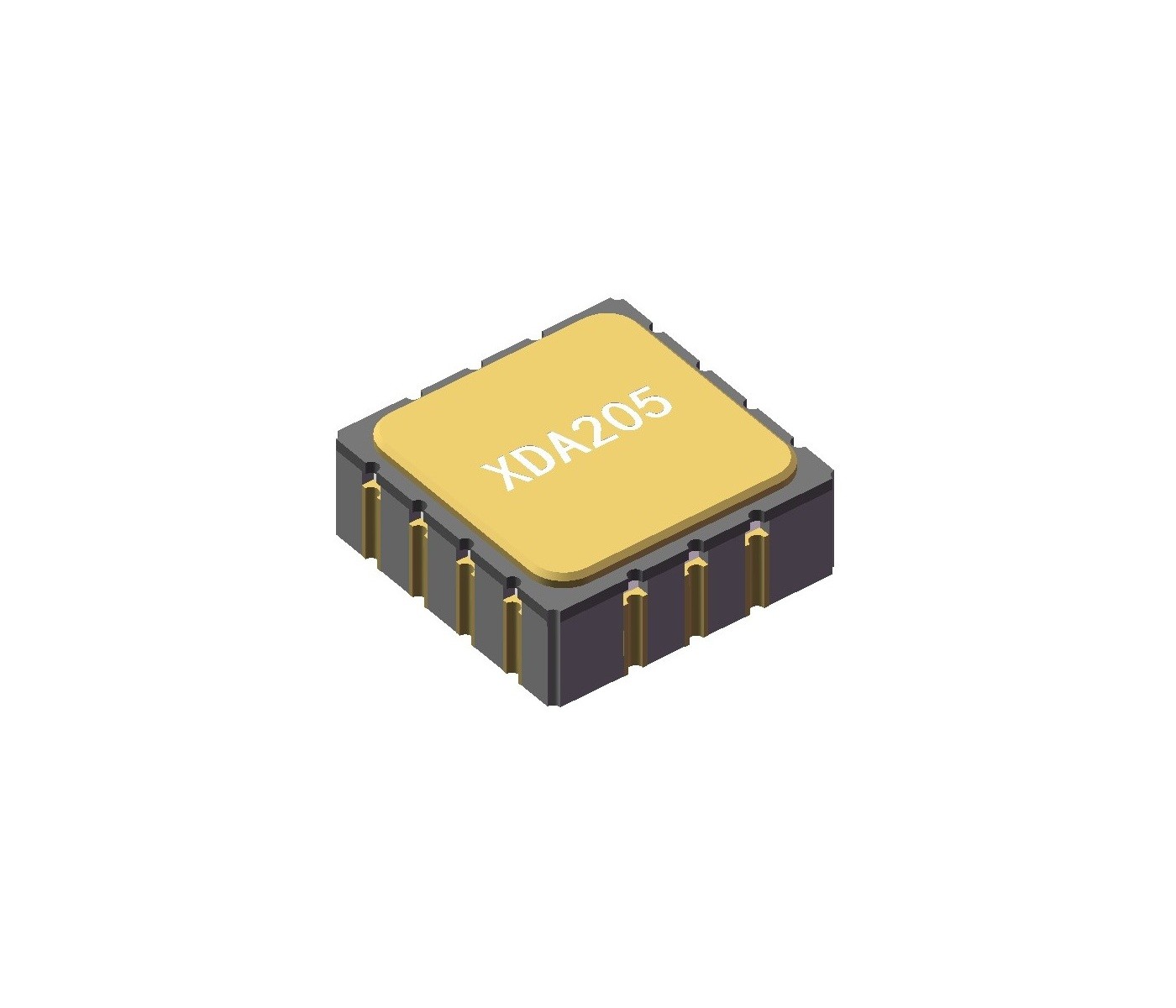

MEMSLink XDA205 Industrial-Grade 2-Axis MEMS Accelerometer
Vendor: MEMSLink 芯动联科
Product: XDA205 工业级 2 轴 MEMS 加速度计
The XDA205 is MEMSLink's industrial X/Y two-axis MEMS accelerometer with configurable ±2g/±3g ranges, 1000 Hz 3dB bandwidth and 5 ug Allan bias stability, 20-bit two's-complement output over SPI at only 0.4 mA typical current; 3.0-3.6 V supply, -40°C to +85°C in a 6x6x2.25 mm LCC package with 5,000 g powered shock, aimed at tilt and deformation monitoring demanding small range, low noise and high stability.
| 封装 | LCC 6 x 6 x 2.25 mm |
| 量程 | ±2 g / ±3 g（可配置） |
| 敏感轴 | 2 轴（X/Y） |
| 工作温度 | -40°C ~ +85°C |
| 工作电压 | 3.0-3.6 V |
| 带宽（3dB） | 1000 Hz |
| 输出分辨率 | 20 bit |
| 零偏稳定性 | 5 ug（Allan） |
| 典型工作电流 | 0.4 mA |
| 抗冲击（带电） | 5,000 g |
