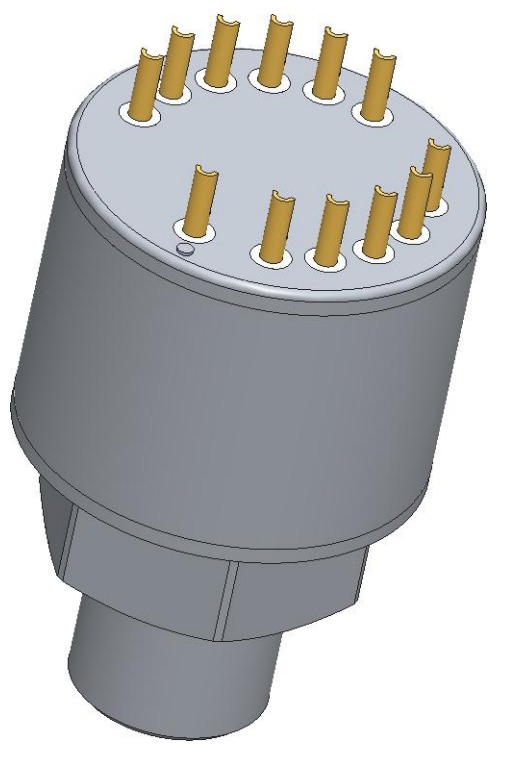

MEMSLink XDP8100 Resonant MEMS Absolute Pressure Sensor
Vendor: MEMSLink 芯动联科
Product: XDP8100
MEMSLink XDP8100 resonant MEMS absolute pressure sensor: 0-350 kPa range, ±0.02%FS total accuracy (±0.01%FS enhanced grade), ±0.01%FS/yr long-term stability, <2 Pa/g acceleration sensitivity, SPI digital output without re-calibration in a φ25x27.5 mm housing with M12 pressure port for meteorology, pressure instruments and air-data computers.
| interface | SPI，供电 5 V |
| dimensions | φ25 × 27.5 mm |
| overpressure | 2 × FS |
| pressure_port | M12 |
| operating_temp | -45°C ~ +85°C |
| pressure_range | 0–350 kPa 绝压（可选） |
| total_accuracy | ±0.02%FS（标准级）/ ±0.01%FS（提高级） |
| measuring_medium | 干燥非腐蚀性气体 |
| acceleration_effect | <2 Pa/g |
| long_term_stability | ±0.01%FS / 年 |
