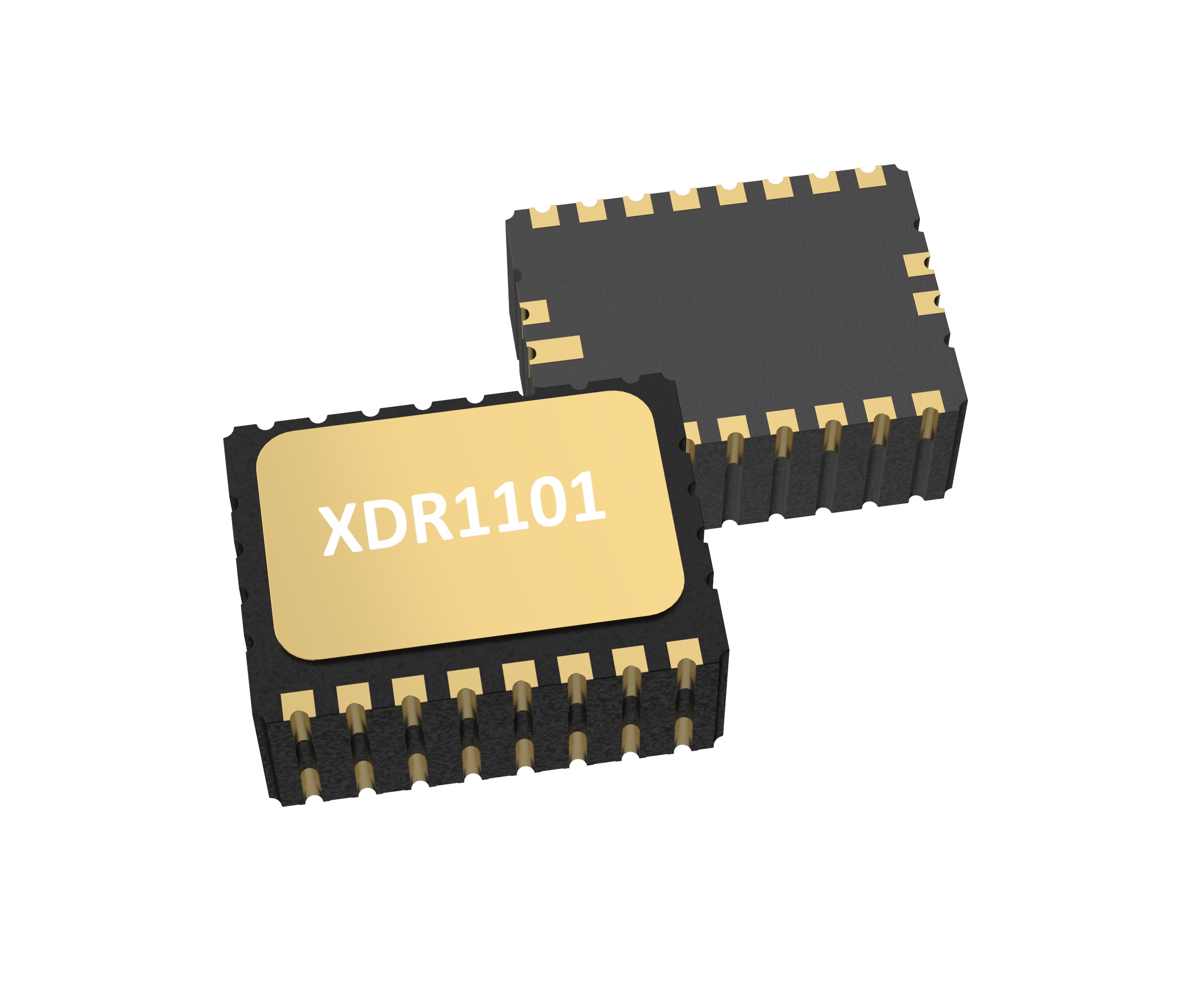

MEMSLink XDR1101 Low-Noise Industrial-Grade Z-Axis MEMS Gyroscope
Vendor: MEMSLink 芯动联科
Product: XDR1101 工业级 Z 轴 MEMS 陀螺仪
The XDR1101 is MEMSLink's low-noise industrial Z-axis MEMS gyroscope with a ±100°/s range and 12.5 Hz 3dB bandwidth, delivering 0.2°/hr Allan bias stability and only 0.03°/√hr ARW; 24-bit two's-complement output over SPI with integrated temperature sensor at 40 mA typical current; 3.0-3.6 V supply, -40°C to +85°C in a 5.8x7.8x3.2 mm LCC ceramic package with 3,000 g powered shock, suited to antenna azimuth and attitude measurement demanding tight noise and long-term stability.
| 封装 | LCC 陶瓷 5.8 x 7.8 x 3.2 mm |
| 量程 | ±100 °/s |
| 敏感轴 | Z 轴 |
| 工作温度 | -40°C ~ +85°C |
| 工作电压 | 3.0-3.6 V |
| 带宽（3dB） | 12.5 Hz |
| 输出分辨率 | 24 bit |
| 零偏稳定性 | 0.2 °/hr（Allan） |
| 典型工作电流 | 40 mA |
| 角度随机游走 | 0.03 °/√hr |
| 抗冲击（带电） | 3,000 g |
