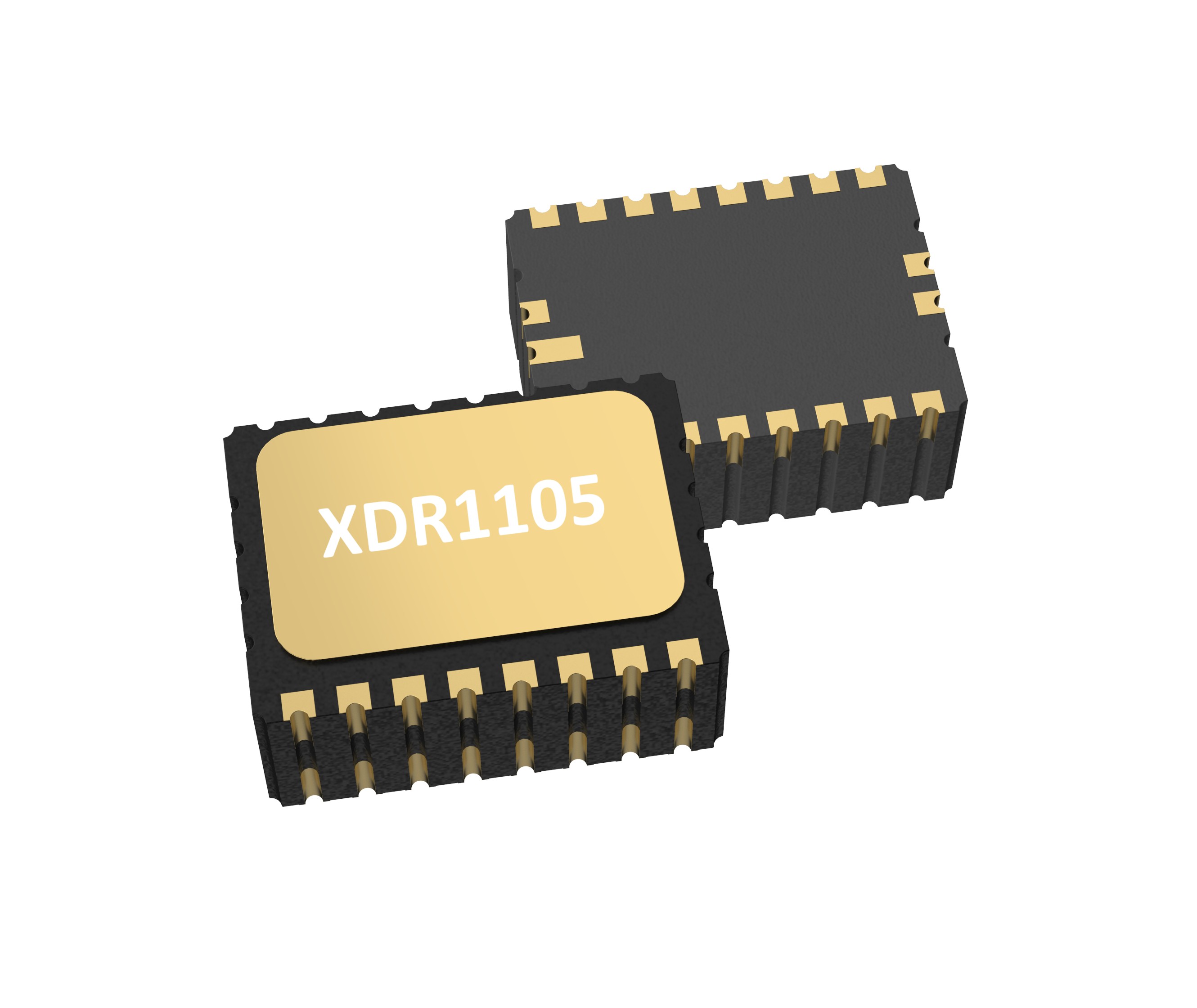

MEMSLink XDR1105 Industrial-Grade Z-Axis MEMS Gyroscope
Vendor: MEMSLink 芯动联科
Product: XDR1105 工业级 Z 轴 MEMS 陀螺仪
The XDR1105 is MEMSLink's (SensorTech, STAR Market 688582) industrial-grade Z-axis MEMS gyroscope with a ±500°/s range, 100 Hz configurable 3dB bandwidth, 16,000 LSB/°/s sensitivity and 24-bit output; 0.4°/hr Allan bias stability and 0.15°/√hr ARW at 40 mA typical current, SPI digital output with a 16-bit temperature sensor; 3.0-3.6 V supply, -40°C to +85°C operation in a 5.8x7.8x3.2 mm LCC ceramic package surviving 3,000 g powered shock, aimed at aided navigation, AHRS, platform stabilization and industrial IMUs.
| 封装 | LCC 陶瓷 5.8 x 7.8 x 3.2 mm |
| 量程 | ±500 °/s |
| 敏感轴 | Z 轴 |
| 灵敏度 | 16,000 LSB/°/s |
| 工作温度 | -40°C ~ +85°C |
| 工作电压 | 3.0-3.6 V |
| 带宽（3dB） | 100 Hz（可配置） |
| 输出分辨率 | 24 bit |
| 零偏稳定性 | 0.4 °/hr（Allan） |
| 典型工作电流 | 40 mA |
| 角度随机游走 | 0.15 °/√hr |
| 抗冲击（带电） | 3,000 g |
