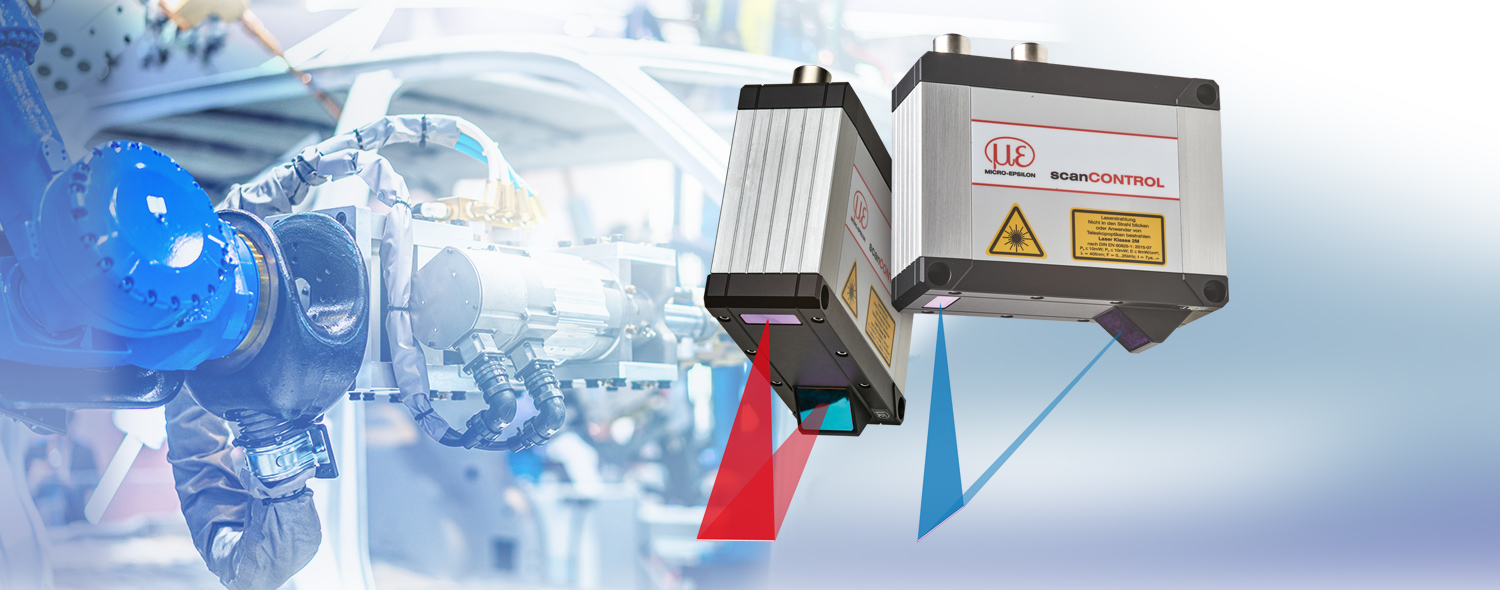

Micro-Epsilon scanCONTROL 30x0 2D/3D Laser Profile Scanners

Vendor: Micro-Epsilon (Germany)

Product: scanCONTROL 30x0 2D/3D

Micro-Epsilon (Germany) scanCONTROL 30x0 (LLT30x0) 2D/3D laser profile scanners deliver calibrated profile data at up to 9.6 million points/s with profile frequencies up to 10 kHz; measuring ranges 25-600 mm, best linearity 1.5 µm (±0.006-0.012%), 2,048 points per profile. GigE Vision, RS422, Ethernet (UDP/Modbus TCP), PROFINET, EtherCAT and EtherNet/IP interfaces, IP67 protection and PoE supply, with optional 405 nm blue laser for transparent, red-hot or organic materials; used for battery film planarity, tire geometry and inline gap/step 3D inspection.

Models	LLT30x0-25 / -50 / -100 / -200 / -430 / -600
Linearity	1.5 µm (±0.006-0.012% FSO)
Interfaces	GigE Vision, RS422, Ethernet UDP/Modbus TCP, PROFINET, EtherCAT, EtherNet/IP
Protection	IP67, PoE 11-30 VDC
Measuring Range Z	15-220 mm (field up to 600 x 600 mm)
Profile Frequency	up to 10 kHz
Profile Resolution	2,048 points/profile, 9.6 M points/s

Laser Profile Scanning Laser Profile Scanner 3D Inspection GigE Vision Blue Laser

https://www.micro-epsilon.com/2d-3d-measurement/laser-profile-scanners/scancontrol-30xx/
