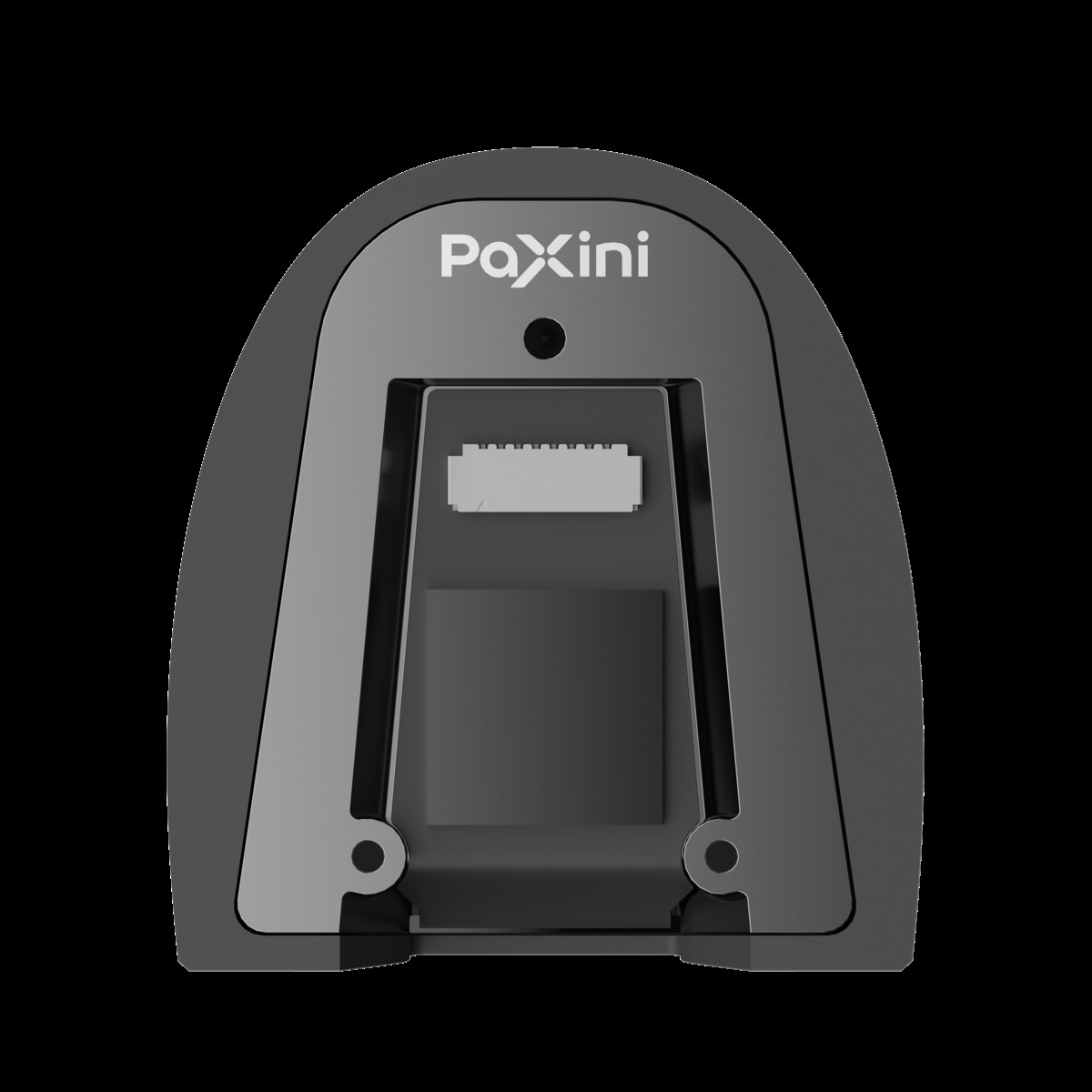

PaXini PX-6AX-GEN3 Third-Gen Professional 6D Tactile Sensor

Vendor: PaXini

Product: PX-6AX-GEN3

PaXini PX-6AX-GEN3 Third-Gen Professional 6D Tactile Sensor

PaXini PX-6AX-GEN3 third-generation 6D Hall-effect array tactile sensor: 0-25 N normal / ±10 N tangential range, 0.01 N minimum force resolution, 0.1 mm spatial resolution, up to 717 taxels, 1 MHz sampling with 1 kHz output, <0.5%FS repeatability, IP68 sealing and >10M press life across 12 fingertip/fingerpad/palm form factors for dexterous hands and humanoid robots.

Life	>1000
Range	0-25 N ±10 N
Taxels	717
Ingress	IP68
Overload	200% / 300%
Sampling	1,000,000 Hz（ 1000 Hz）
Min Force	0.01 N
Repeatability	<0.5%FS
Operating Temp	0-50°C
Supply Voltage	3-5 V
Spatial Resolution	0.1 mm

Sensors Tactile sensors PaXini PX-6AX-GEN3 6D Hall Array

https://www.paxini.com/cn/ax/gen3
