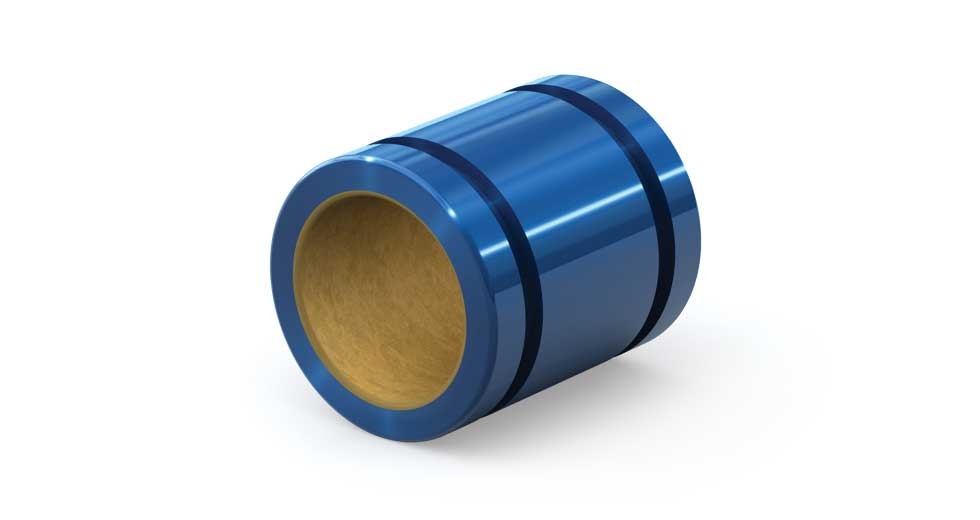

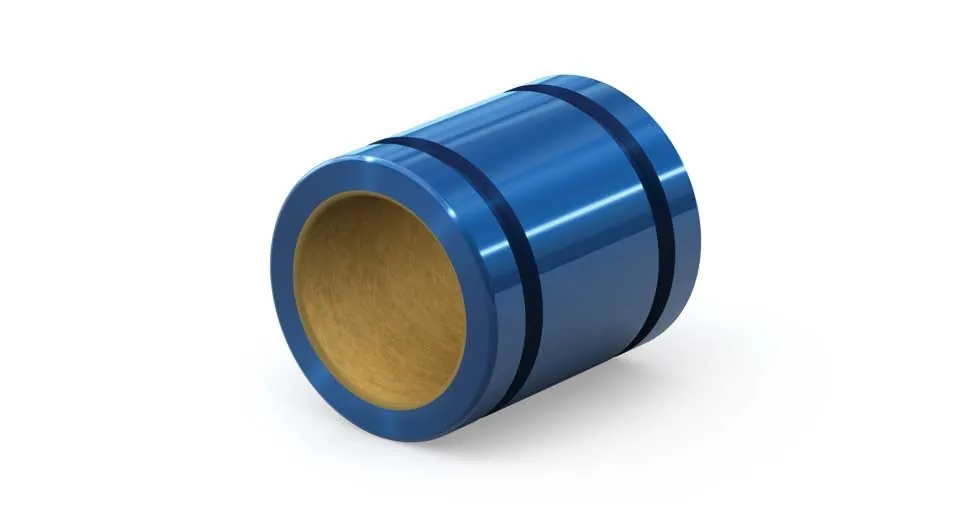

Thin Wall Plain Linear Bearing FG08 8mm FAG Interchange
Vendor: PBC Linear (USA)
Product: Thin Wall Plain Linear Bearing FG08 8mm FAG Interchange
Thin-wall FAG-interchange plain linear bearing, 8mm precision ID, 0.0005" per side clearance, anodized aluminum shell; -240 to 204°C, up to 8 m/s, shafts to 12 ft; approx. 0.01 lbs.
| Interchange | FAG thin-wall dimensions |
| Maximum Speed | 8 m/s |
| Approx. Weight | 0.01 lbs |
| Max Shaft Length | 12 ft |
| Running Clearance | 0.0005 in per side |
| Temperature Rating | -240~204°C |
| Inner Diameter (ID) | 8 mm |
