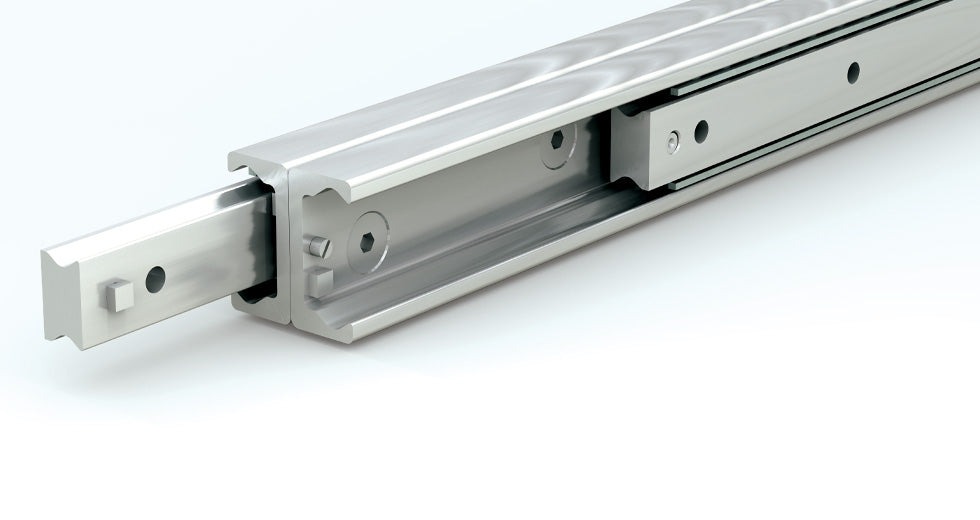

Rear Mount Industrial Drawer Slide SDB28S-0130MV Full-Extension, Width: 28mm Stroke: 148mm
Vendor: PBC Linear (USA)
Product: SDB28S-0130MV
Rear mount industrial drawer slide with a 28mm width and 148mm maximum stroke for heavy-duty, load-supported full extension beyond the mounting structure. Built from hardened, zinc-plated steel with precision ball guidance, the SDB Back Mount Series delivers smooth motion, corrosion resistance, and reliable support throughout full-extension travel. The internal rail can also be configured to move in both directions, adding flexibility for trays, digital panels, storage bins,
| Material | Hardened Steel (56.5–60.5 HRC) |
| Max Stroke | 148 mm |
| Rail Length | 130 mm |
| Nominal Size | 28 mm |
| Max Static Load (Fy) | 236 N |
