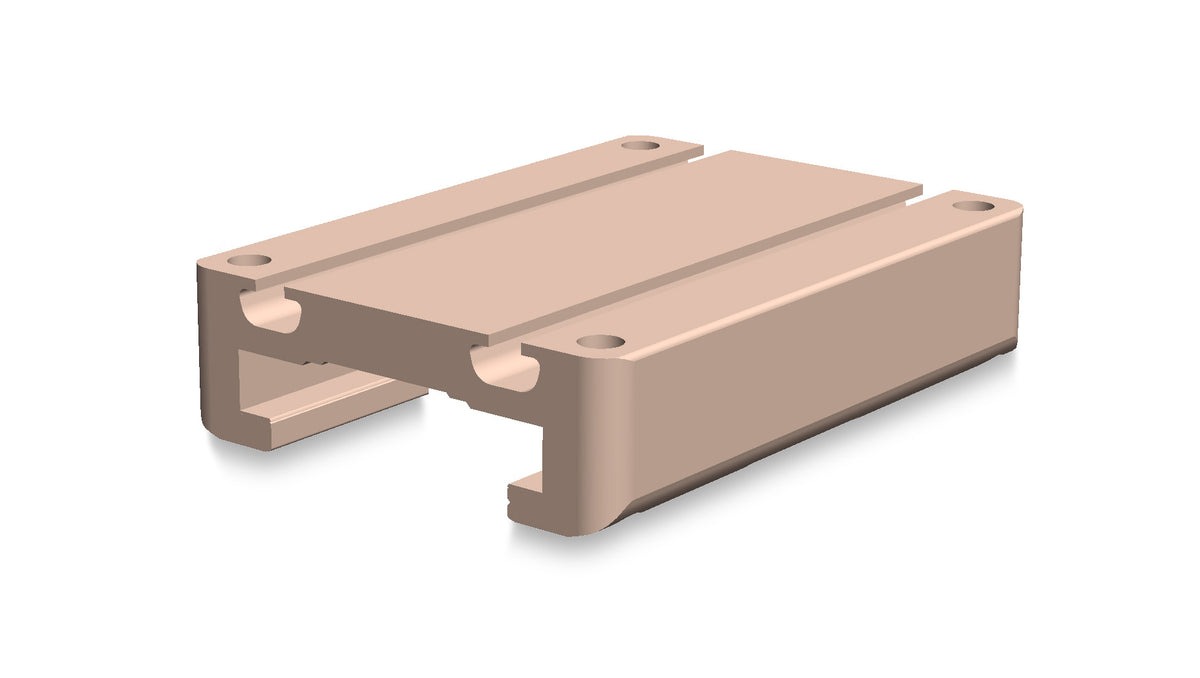

Low Profile Linear Carriage - Uni-Guide - UGA040C-0C1G00
Vendor: PBC Linear (USA)
Product: Low Profile Linear Carriage - Uni-Guide - UGA040C-0C1G00
Low-profile Uni-Guide linear carriage, 100 mm anodized aluminum body with FrelonGOLD liner, compensated running clearance 0.064-0.089 mm, mates with UGA040R series rails; approx. weight 0.504 lbs.
| Liner | FrelonGOLD |
| Approx. Weight | 0.504 lbs |
| Carriage Length | 100 mm |
| Compatible Rails | UGA040R series |
| Running Clearance | 0.064-0.089 mm |
