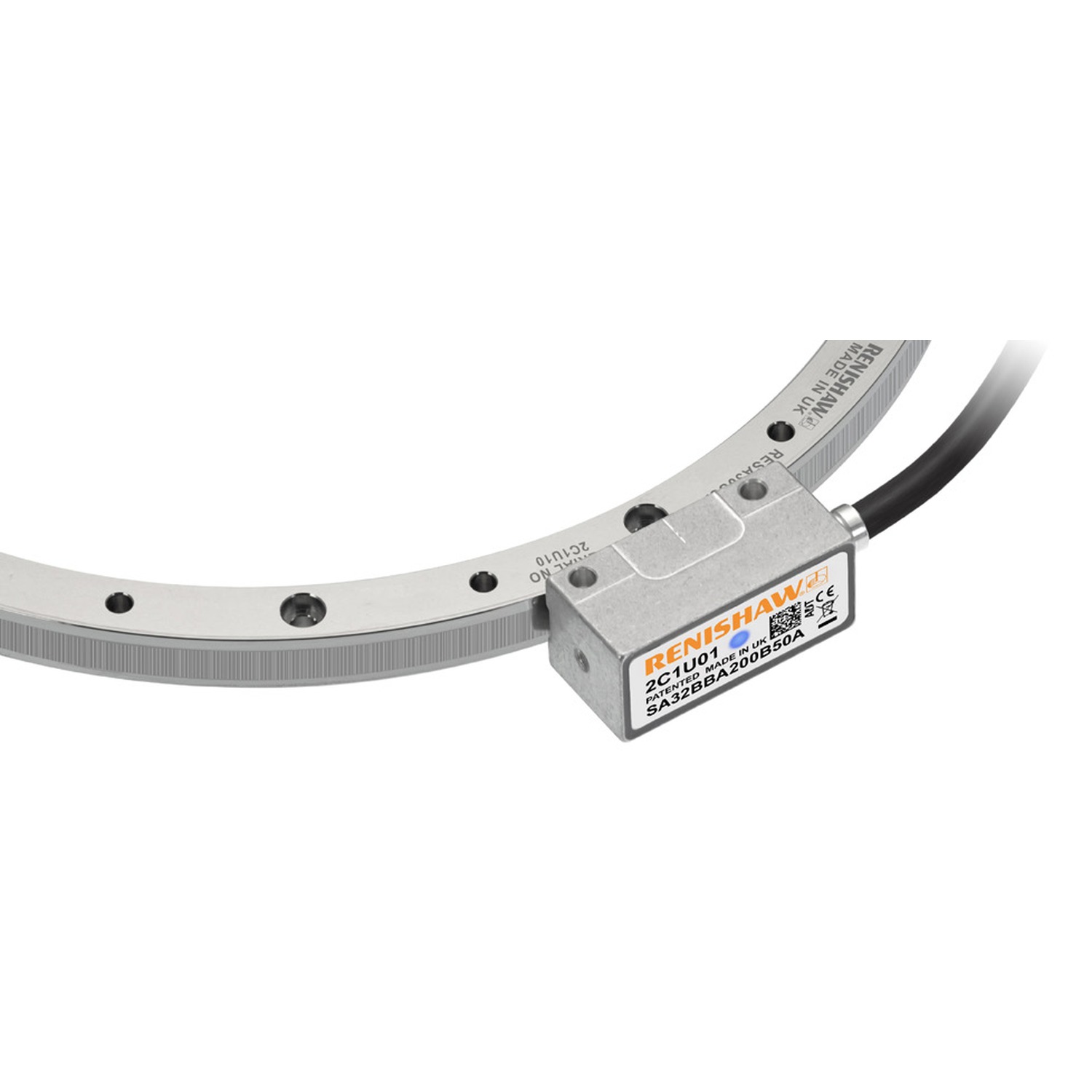

Renishaw RESOLUTE True-Absolute Optical Encoder Series

Vendor: Renishaw

Product: RESOLUTE™

Renishaw RESOLUTE True-Absolute Optical Encoder Series

Renishaw (UK) is a world leader in precision measurement and encoders. RESOLUTE is a high-speed, fine-resolution true-absolute open optical encoder system: the readhead acts as an ultra-fast miniature camera imaging a single-track 30 um-pitch absolute scale, with a DSP computing absolute position - position is available immediately at switch-on with no battery and no multi-track de-phasing. Linear resolution down to 1 nm, rotary up to 32 bit (4,294,967,296 counts/rev, ~0.0003 arcsec), max reading speed 100 m/s (36,000 rpm), SDE +/-40 nm and jitter <10 nm RMS, with dirt-immune scale reading. Variants include UHV (120 C bake-out), ETR (-40 to +80 C) and FS (functional safety SIL 2 / PL d); serial interfaces cover BiSS C / BiSS Safety, FANUC, Mitsubishi, Panasonic, Siemens DRIVE-CLiQ and Yaskawa. Linear scales RTLA/RELA/RSLA up to 21 m; RESA30/REXA30 rotary rings 52-550 mm with typical installed accuracy of +/-1.9 arcsec. Used in semiconductor equipment, radar/SATCOM antennas, precision rotary tables and high-end robot joints.

Sde+/-40 nm sub-divisional error
Typetrue-absolute open optical encoder system (readhead + single-track 30 um pitch absolute scale)
Jitter<10 nm RMS
Readhead18-19 g; IP64 (standard/ETR); 5 V +/-10%, 1.25 W max; 500 m/s2 operating acceleration
Variantsstandard; UHV (120 C bake-out, IP30); ETR (-40 to +80 C); FS functional safety SIL 2 / PL d
DatasheetRenishaw RESOLUTE FS data sheet (a1f5bb1985e340b5bdfde2afa6f4a3fb.pdf)
Max Speed100 m/s linear; 36,000 rpm rotary
Principlereadhead as ultra-fast miniature digital camera + high-speed DSP position determination; built-in position-check algorithm
InterfacesBiSS C, BiSS Safety, FANUC (alpha/alphai), Mitsubishi (J4/J5, MDS-D2/DH2/DM2/DJ), Panasonic (A5/A6), Siemens DRIVE-CLiQ, Yaskawa (Sigma-5/7)
DiagnosticsADTa-100 Advanced Diagnostic Tool + ADT View software
Linear ScalesRTLA30 tape to 21 m (+/-5 um/m); RELA30 ZeroMet to 1.7 m (+/-1 um); RSLA30 to 5 m
Rotary ScalesRESA30 rings 52-550 mm (typ. installed +/-1.9 arcsec @550 mm); REXA30 +/-1 arcsec with two readheads
Linear Resolutiondown to 1 nm
Rotary Resolutionup to 32 bit = 4,294,967,296 counts/rev (~0.0003 arcsec)
Optical encodersAbsolute EncodersRenishawRESOLUTECircular GratingRobot joints
https://www.renishaw.com/en/resolute-optical-absolute-encoder-series--37823
