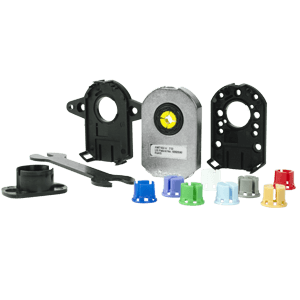

Same Sky AMT102-V Incremental Modular Encoder (48-2048 PPR / 15,000 RPM)

Vendor: Same Sky / CUI Devices (USA)

Product: AMT102-V

Same Sky AMT102-V Incremental Modular Encoder (48-2048 PPR / 15,000 RPM)

Same Sky (formerly CUI Devices, USA) AMT102-V is a capacitive incremental modular encoder with 16 DIP-selectable resolutions 48-2048 PPR (x4 quadrature), to 15,000 RPM at low and 7,500 RPM at high resolution; 3.6-5.5 V supply at 6 mA unloaded, CMOS quadrature outputs 2 mA/channel, -40~100°C (custom -40~125°C); snap-on modular housing needs no alignment, suiting robot joint motor feedback and closed-loop stepper/servo.

Output	CMOS quadrature, 2 mA/channel
Supply	3.6-5.5 V, 6 mA unloaded
Max Speed	15,000 RPM (<=512 PPR) / 7,500 RPM (>=1024 PPR)
Resolution	48-2048 PPR, 16 DIP-selectable (x4 quadrature)
Operating Temp	-40 ~ 100 C (custom -40 ~ 125 C)

Incremental encoders Modular Capacitive AMT

https://www.sameskydevices.com/product/motion-and-control/rotary-encoders/incremental/modular/amt102-v
