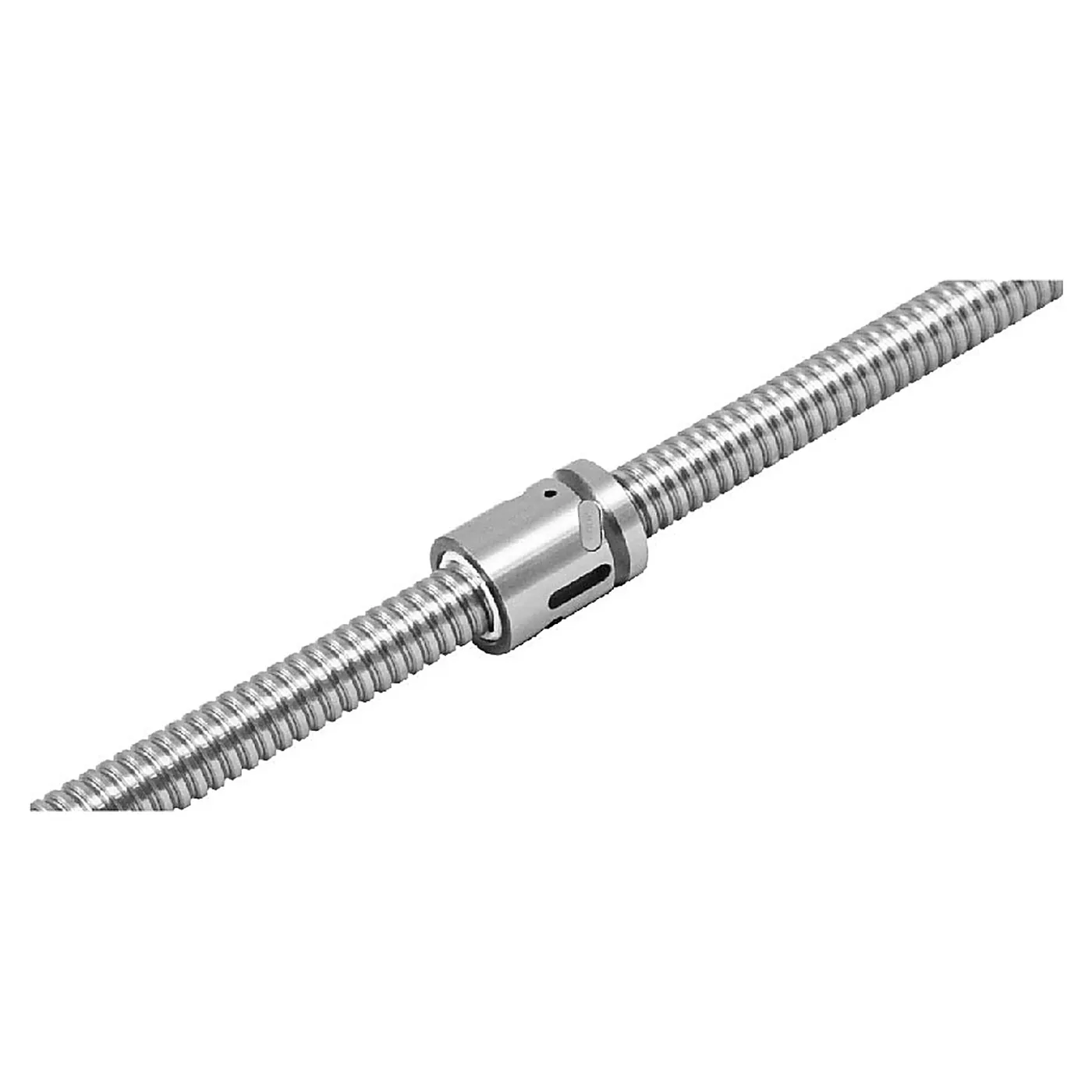

TBI Motion SCI/SCNI Precision Ground Ball Screws (Ø16-80 mm)
Vendor: TBI Motion 全球传动
Product: SCI/SCNI 精密研磨滚珠丝杠

TBI Motion SCI/SCNI precision ground ball screw series covers shaft diameters Ø16-80 mm with leads 4-10 mm; dynamic load rating up to 7346 kgf, static up to 31953 kgf and axial stiffness up to 109 kgf/μm; SCNI uses longer nuts for higher load capacity with dual-circuit recirculation for smooth running - built for machine tools, injection molding and heavy robot axes.
| lead_range | 4-10 mm |
| shaft_diameter | 16-80 mm |
| axial_stiffness | up to 109 kgf/μm |
| max_static_load | 31953 kgf (313 kN) |
| max_dynamic_load | 7346 kgf (72 kN) |
