TBI Motion Rolled Ball Screw Series (Ø6-32 mm, C7/C5, shafts to 6 m)
Vendor: TBI Motion (Taiwan, China)

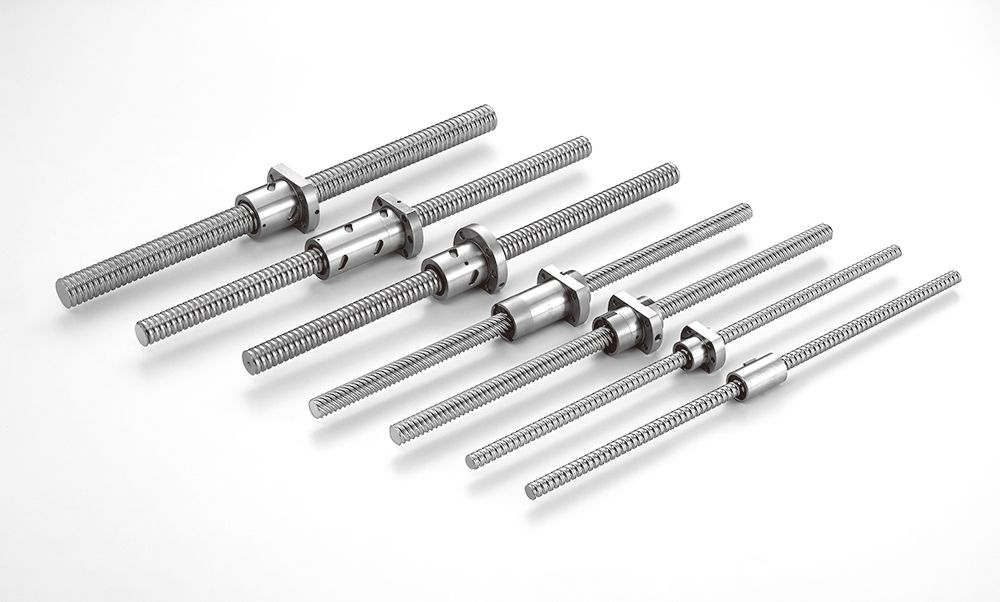

Product: Rolled Ball Screw Series
TBI Motion (Taiwan) rolled ball screws are thread-rolled for smoother operation and cost efficiency, covering Ø6-32 mm shafts with 1-64 mm leads, ball Ø0.8-6.35 mm, accuracy C10/C7/C5 (e300 = 50 µm at C7), standard shaft lengths 1000-6000 mm; nuts span K/V/U/Y/YA/BSH/SQ types with P0 preload, widely used in automation, robot transfer axes and AGVs.
| lead | 1-64 mm |
| accuracy | C10 / C7 / C5 (e300: 210/50/23 µm) |
| nut_types | K / V / U / Y / YA / BSH / SQ |
| shaft_length | 1000-6000 mm standard |
| ball_diameter | 0.8-6.35 mm |
| shaft_diameter | 6-32 mm |
