Tensopt Sky Eye SIC-MR-30 7D Spatial Intelligence Camera

Vendor: Tensopt

Product: Tensopt SIC-MR-30 7D

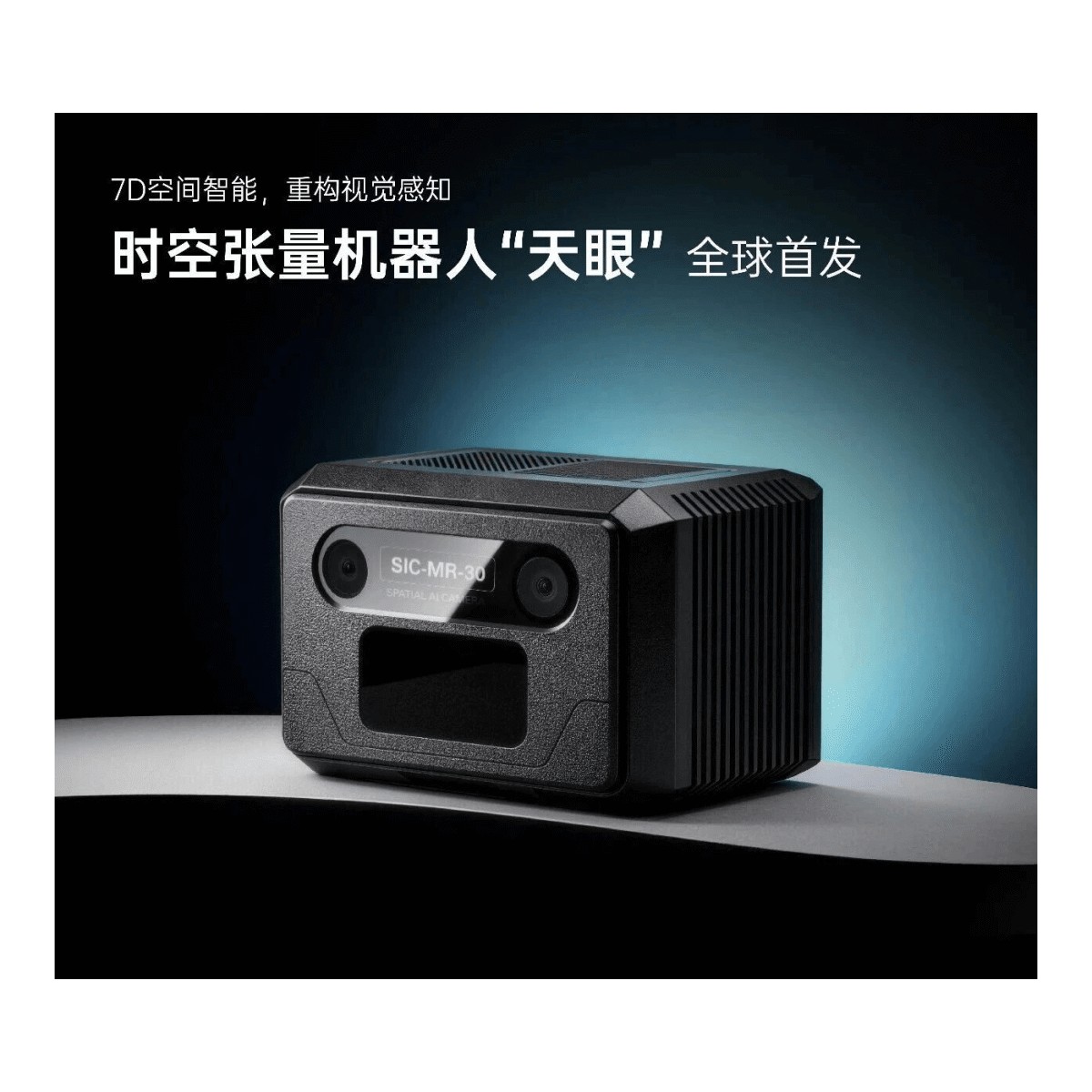

Tensopt Sky Eye SIC-MR-30 7D Spatial Intelligence Camera

Tensopt, inheriting 60+ years of precision optoelectronics from the Chinese Academy of Sciences' Xi'an Institute of Optics, debuted its Sky Eye SIC-MR-30: a proprietary single-optical-path dual-mode architecture performing 3D ranging and 2D semantic imaging simultaneously on one hardware, front-end fusing RGB, depth, point cloud and temporal information into 7D data (XYZ + RGB + timestamp); 0.15-30 m range with <1% distance precision, up to 30.72M points/s, on-board AI outputting colored depth point clouds directly, with standout detection of transparent and highly reflective objects.

Range0.15~30 m
Output7D (XYZ + RGB + )
ComputeAI
Heritage60
Precision<1%
Point Rate3072 /
