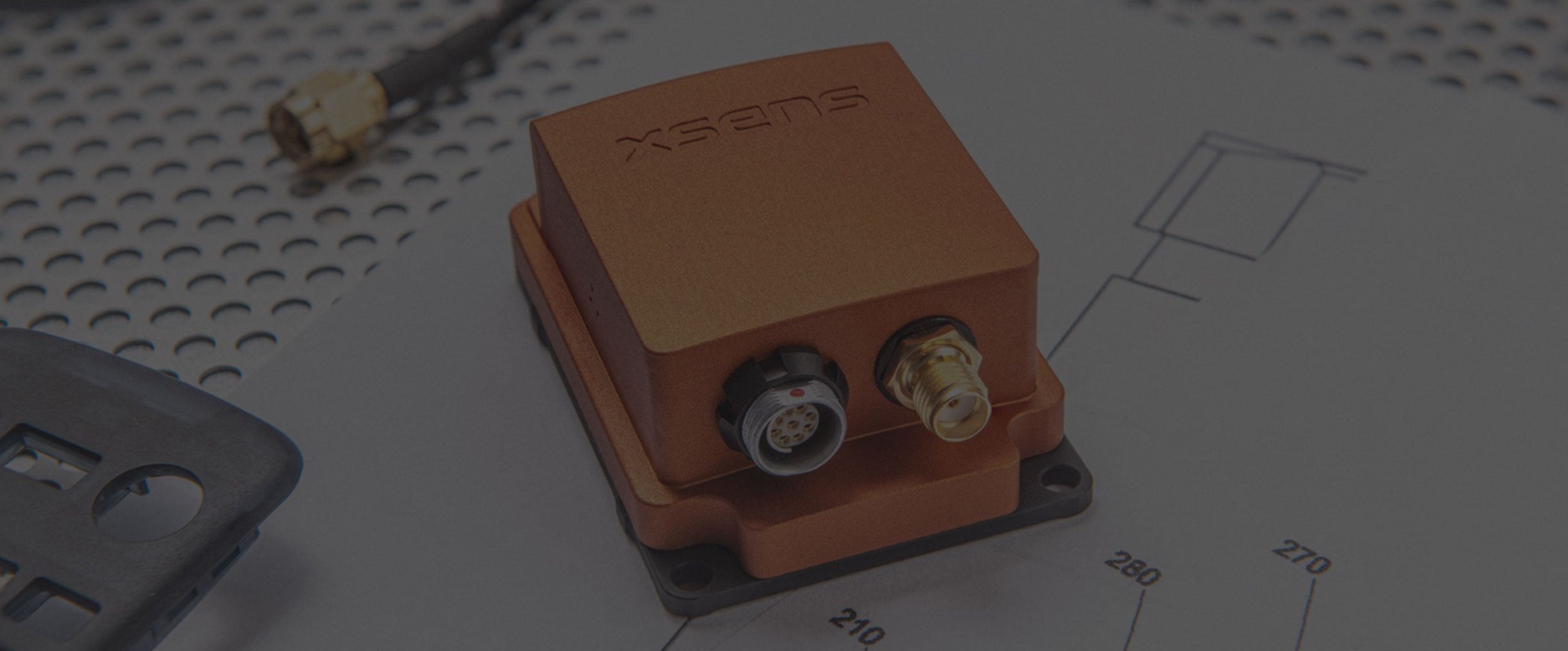

Movella Xsens MTi-G-710 GNSS/INS

Vendor: Movella Technologies B.V. (Netherlands, formerly Xsens)

Product: MTi-G-710 GNSS/INS

Movella Xsens MTi-G-710 GNSS/INS

Movella (formerly Xsens) MTi-G-710 is a GNSS/INS module with u-blox MAX-M8: 1.0 m (1 sigma) position, 0.05 m/s velocity, 0.2 deg RMS roll/pitch, 0.8 deg RMS heading; 450 deg/s gyro with 10 deg/h bias stability, IP67, 58 g, 660 mW, USB/RS232/RS422. Dependable combined navigation for inspection robots, ag machinery and vehicles.

Brandu-blox
ModelMAX-M8
Weight58 g
Position1.0 m (1σ STD)
Velocity0.05 m/s (1σ STD)
Barometeronboard
ProtocolsXbus, ASCII (NMEA)
Dimensions57 × 41.9 × 23.6 mm
InterfacesUSB, RS232, RS422, UART
Roll, Pitch0.2 deg RMS
Yaw/heading0.8 deg RMS
Magnetometeronboard
Input Voltage3V3, 4.5 V–34 V
Noise Density0.01 °/s/√Hz
Output Frequencyup to 2 kHz
Standard Full Range450 deg/s
In-run Bias Stability10 deg/h
Ip-rating (equivalent)IP67
Power Consumption (typ.)660 mW
IMUGNSSINSIntegrated navigationInspectionRobots
https://www.xsens.com/sensor-modules/xsens-mti-g-710-gnss-ins
