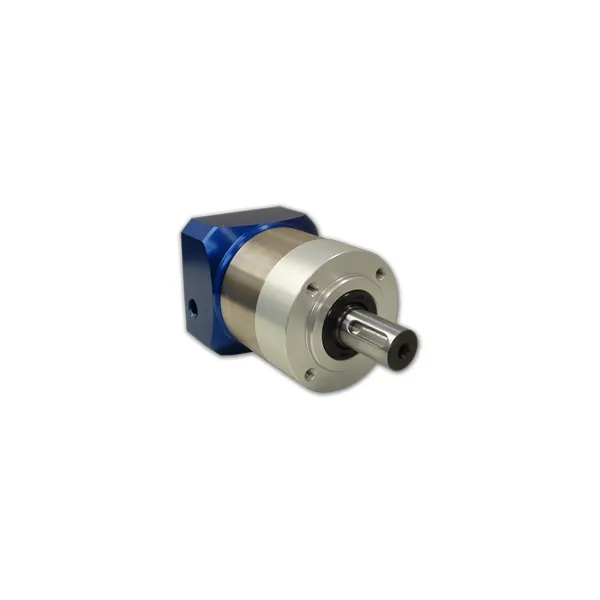

GBPH-0601-CS High-Torque Planetary Gearbox
Vendor: Anaheim Automation (USA)
Product: GBPH-0601-CS-003
GBPH-0601-CS planetary gearbox for NEMA 23, 3:1, rated 354 in-lbs, backlash <=20 arc-min, 97% eff.
| Stages | 1 |
| 重量 | 2.45 lbs |
| L2 Length | 29 mm |
| Efficiency | 97 % |
| Gear Ratio | 3:1 |
| 额定转速 | 5000 RPM |
| Backlash Maximum | 20 arc-min |
| Max Output Torque | 1062 in-lbs |
| Torsional Rigidity | 7 Nm/arcmin |
| Rated Output Torque | 354 in-lbs |
