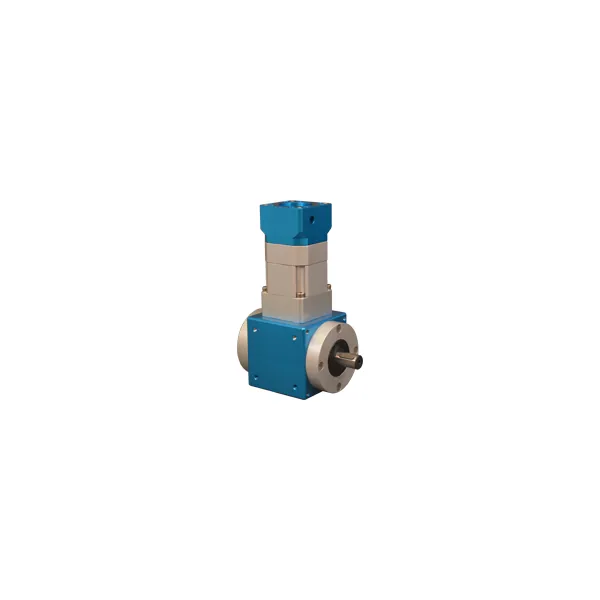

GBPHR-0601-SP Right-Angle Planetary Gearbox
Vendor: Anaheim Automation (USA)
Product: GBPHR-0601-SP-003-AA231-250
GBPHR-0601-SP right-angle planetary gearbox, 3:1, rated 390 in-lbs, max 1170 in-lbs, backlash <=12 arc-min, 3300 RPM, 91% efficiency.
| Stages | 1 |
| 重量 | 9.90 lbs |
| L2 Length | 145 mm |
| Efficiency | 91 % |
| Gear Ratio | 3:1 |
| 额定转速 | 3300 RPM |
| Backlash Maximum | 12 arc-min |
| Max Output Torque | 1170 in-lbs |
| Torsional Rigidity | 6.5 Nm/arcmin |
| Rated Output Torque | 390 in-lbs |
