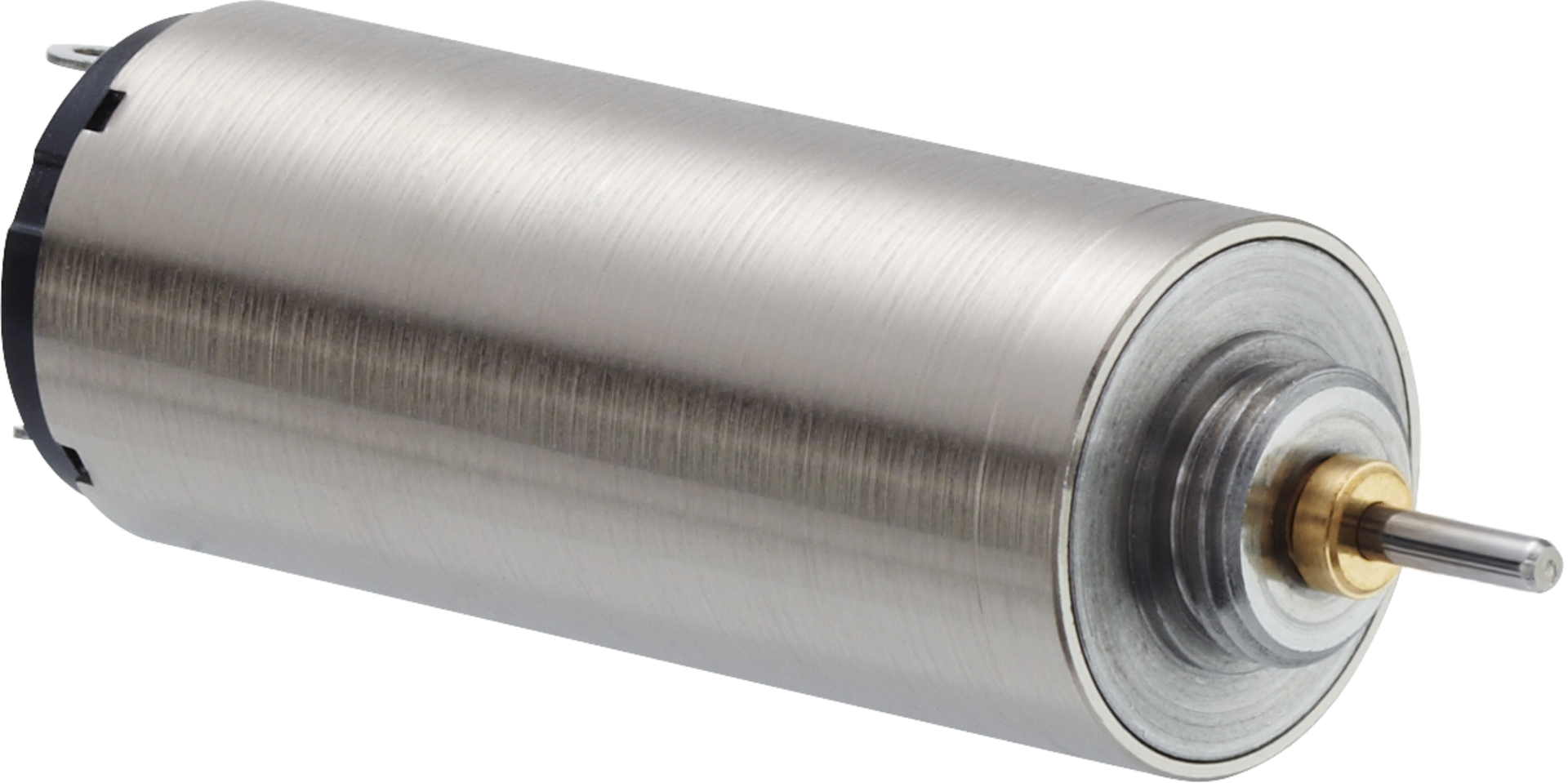

FAULHABER Series 1024 SR Coreless DC Micromotors
Vendor: FAULHABER (Germany)
Product: 1024 SR 系列空心杯直流微电机
The FAULHABER 1024...SR series are Ø10 mm coreless-winding DC micromotors: 9 V nominal (3-12 V across the series), no-load speeds to 12900 rpm, rated torque up to 1.7 mNm and stall torque up to 5.1 mNm at 82% peak efficiency, weighing just 10.8 g. Rotor inertia 0.12 gcm² and a 3.5 ms mechanical time constant give very fast dynamics; nickel-plated steel housing, -30 to +85 °C operation, stackable with planetary gearheads and encoders for dexterous hands, micro actuators and precision instruments.
| 质量 | 10.8 g |
| 堵转转矩 | 最高 5.1 mNm |
| 峰值效率 | 82% |
| 工作温度 | -30 至 +85 °C |
| 最大转速 | 15000 r/min |
| 标称电压 | 9 V (系列 3-12 V) |
| 空载转速 | 最高 12900 r/min |
| 转子惯量 | 0.12 gcm² |
| 转矩常数 | 7.14 mNm/A |
| 额定转矩 | 最高 1.7 mNm |
| 直径×长度 | Ø10 × 23.9 mm |
| 机械时间常数 | 3.5 ms |
