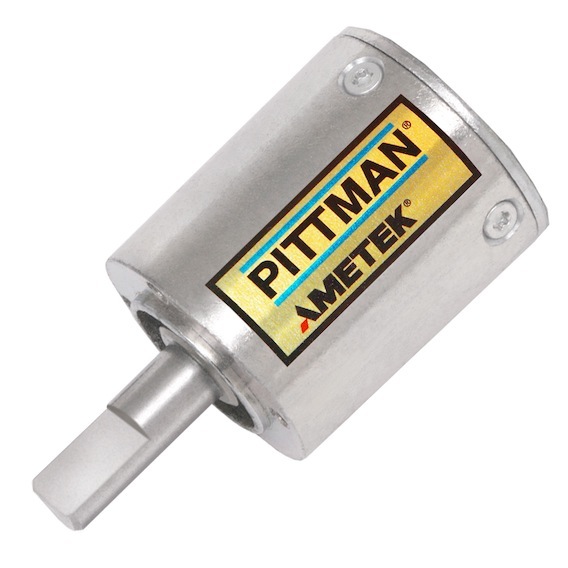

Haydon Kerk Pittman G30A Spur Gearbox (4:1-1296:1, up to 8.83 Nm)
Vendor: Haydon Kerk Pittman / AMETEK (USA)
Product: G30A 正齿轮减速箱

Haydon Kerk Pittman (AMETEK, USA) G30A is a Ø30 mm spur gearbox with 1-4 stages and stock ratios 4:1-1296:1, max load 2.47-8.83 Nm (350-1,250 oz-in), efficiency 0.66-0.90, length 32.64-50.17 mm and weight 110.6-155.9 g; metal gears in a precision housing bolt directly to DC026C/DC030B/DC040B/EC044A Pittman motors for compact high-ratio drives in robot joints, conveyors and positioning mechanisms.
| ratio | 4:1-1296:1 (1-4 stages) |
| length | 32.64-50.17 mm |
| weight | 110.6-155.9 g |
| max_load | 2.47-8.83 Nm (350-1,250 oz-in) |
| efficiency | 0.66-0.90 |
