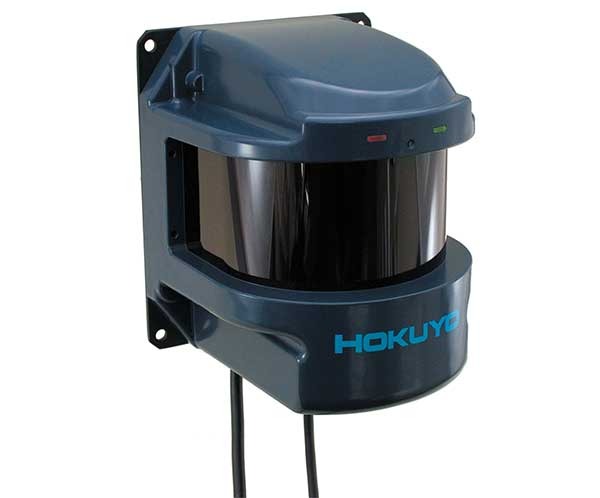

Hokuyo UXM-30LXH-EWA Outdoor-Rated 2D Scanning LiDAR (IP67, Multi-Echo)
Vendor: Hokuyo Automatic 北阳电机 (Japan)
Product: UXM-30LXH-EWA 户外级 2D 激光雷达
Enhance robotic obstacle detection with our UXM-30LXH-EWA LiDAR sensor. Improve safety and efficiency in various robotic applications.
| Weight | 1200 g |
| Accuracy | ±30 mm (0.1-15 m), ±50 mm (15-30 m) |
| Interface | Ethernet 100BASE-TX, SCIP2.2 |
| Scan Time | 50 ms (20 Hz) |
| Dimensions | 124×126×150 mm |
| Multi-Echo | up to 4 echoes |
| Protection | IP67 |
| Scan Angle | 190° |
| Wavelength | 905 nm, Class 1 |
| Repeatability | σ < 10 mm (0.1-15 m) |
| Operating Temp | -10°C to +50°C (-30°C to +50°C with heater) |
| Supply Voltage | 10-30 VDC |
| Detection Range | 0.1-30 m guaranteed (max 120 m) |
| Power Consumption | ≤7.2 W steady-state (≤30 W with heater) |
| Angular Resolution | 0.125° (1520 steps) |
| Measurement Resolution | 1 mm |
