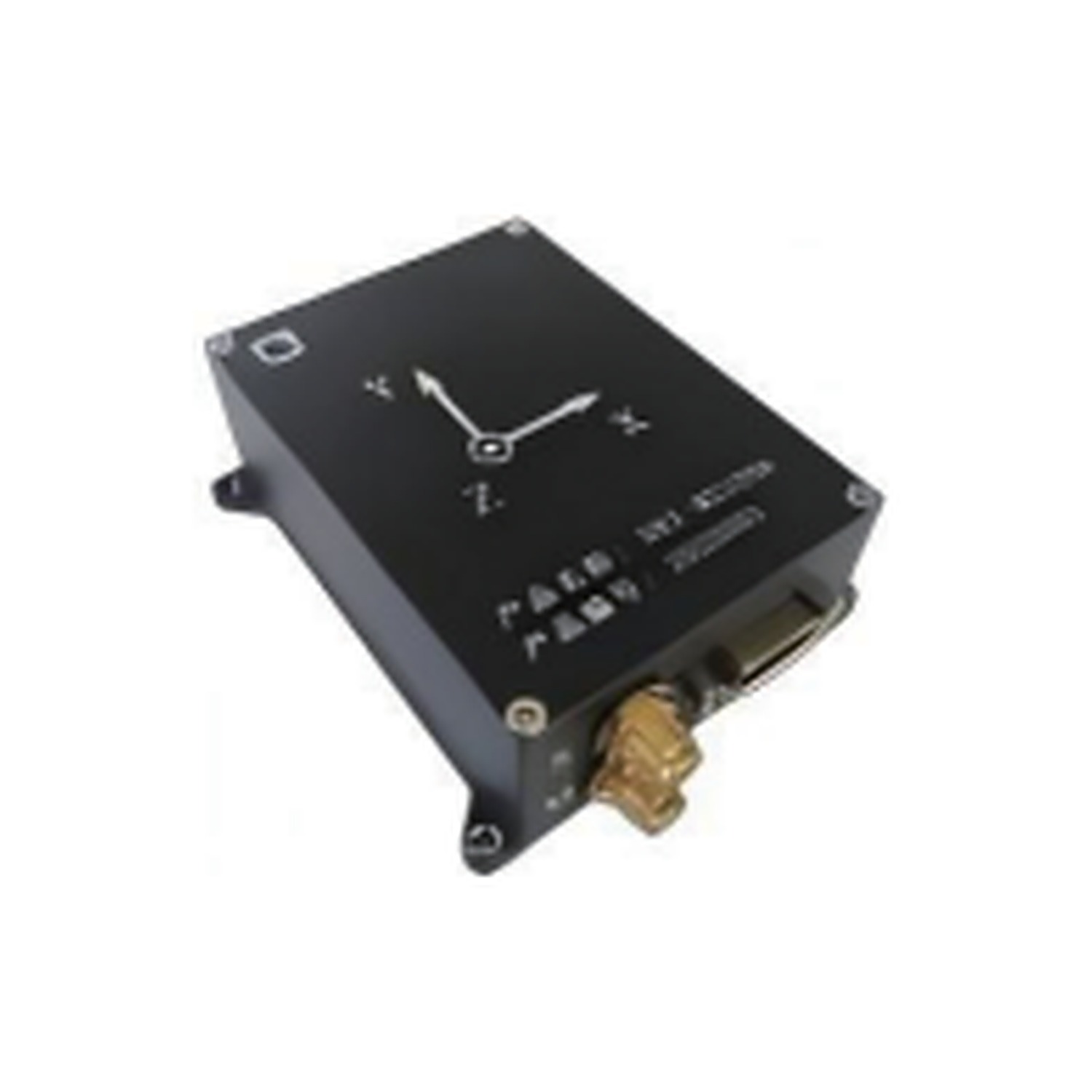

BITNAV DHX-MZ104 MEMS Integrated Navigation System

Vendor: 理工导航 BITNAV

Product: DHX-MZ104 MEMS 组合导航系统

BITNAV DHX-MZ104 MEMS Integrated Navigation System

BITNAV (688282.SH) DHX-MZ104 lightweight cost-effective MEMS integrated navigation system: 68×50×25.5 mm, 105 g, 5-12 V supply, <2 W; gyro range ±450°/s with ≤3°/h (10s,1σ) bias stability and ≥200 Hz bandwidth, accelerometer ±16 g (±32 g optional) with ≤100 μg (10s,1σ) bias stability; horizontal attitude 0.1° (1σ) and heading 0.1° (1σ, 2 m baseline), single-point positioning 3 m (1σ) / height 4.0 m (1σ), velocity 0.1 m/s (1σ), RS-232/RS422 output; for unmanned vehicle, vessel and UAV navigation, control and survey.

size68 × 50 × 25.5 mm
typeMEMS integrated navigation system (INS/GNSS)
power5-12 V, <2 W
weight105 g
bandwidth≥200 Hz (gyro & accel)
interfaceRS-232 / RS422
gyro_range±450°/s
accel_range±16 g (±32 g optional)
attitude_accuracy0.1° (1σ) horizontal; 0.1° (1σ) heading, 2 m baseline
position_accuracy3 m (1σ) single point; 4.0 m (1σ) height
velocity_accuracy0.1 m/s (1σ)
gyro_bias_stability≤3°/h (10s, 1σ)
accel_bias_stability≤100 μg (10s, 1σ)
