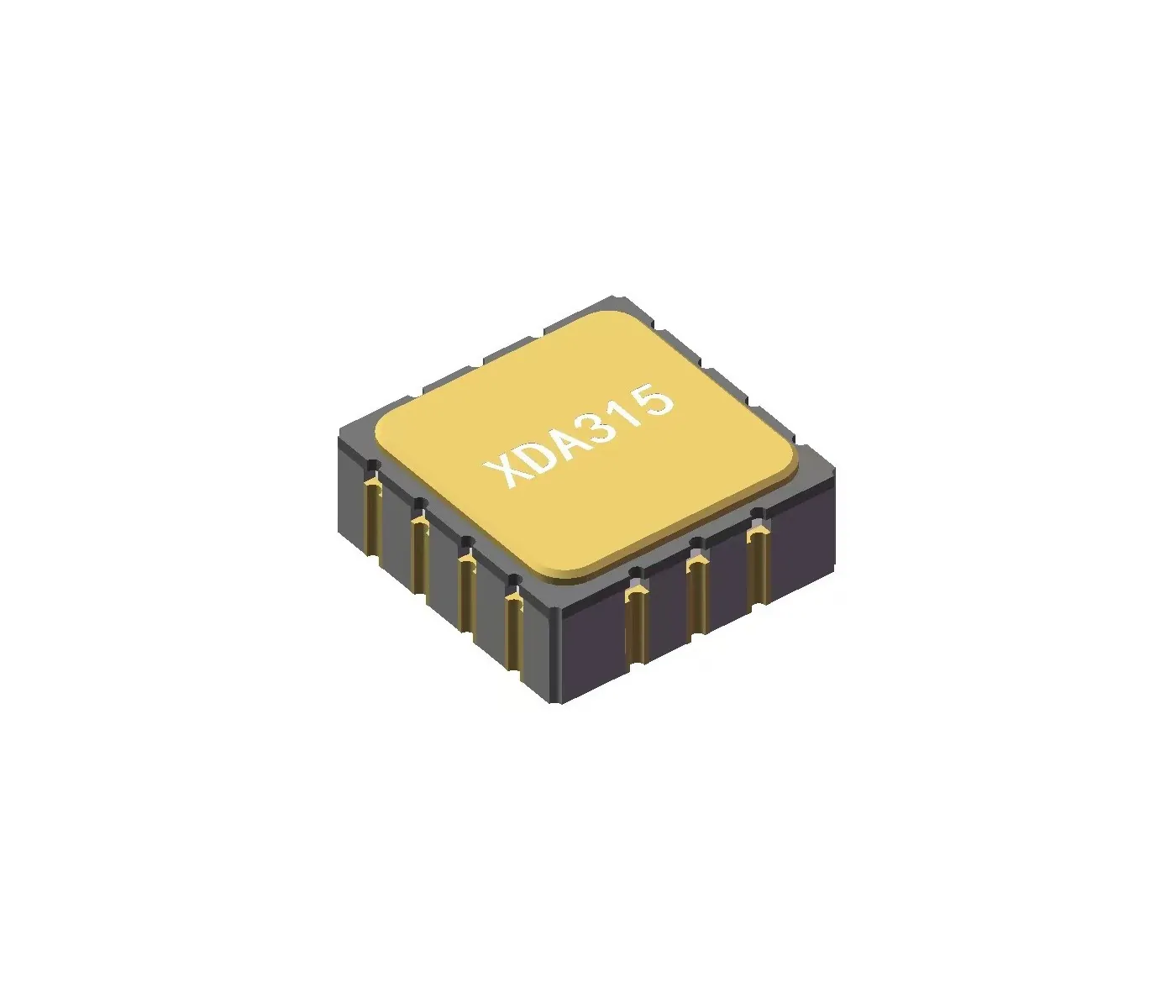

MEMSLink XDA315 Industrial-Grade 3-Axis MEMS Accelerometer
Vendor: MEMSLink 芯动联科
Product: XDA315 工业级 3 轴 MEMS 加速度计
The XDA315 is MEMSLink's industrial-grade 3-axis (X/Y/Z) MEMS accelerometer with user-configurable ±2g/±8g ranges, 1000 Hz 3dB bandwidth and 10 ug Allan bias stability, 20-bit two's-complement output over SPI at only 0.6 mA typical current; 3.0-3.6 V supply, -40°C to +85°C operation in a 6x6x2.25 mm LCC package with 5,000 g powered shock survival for tilt measurement, deformation and vibration monitoring and aided navigation.
| 封装 | LCC 6 x 6 x 2.25 mm |
| 量程 | ±2 g / ±8 g（可配置） |
| 敏感轴 | 3 轴（X/Y/Z） |
| 工作温度 | -40°C ~ +85°C |
| 工作电压 | 3.0-3.6 V |
| 带宽（3dB） | 1000 Hz |
| 输出分辨率 | 20 bit |
| 零偏稳定性 | 10 ug（Allan） |
| 典型工作电流 | 0.6 mA |
| 抗冲击（带电） | 5,000 g |
