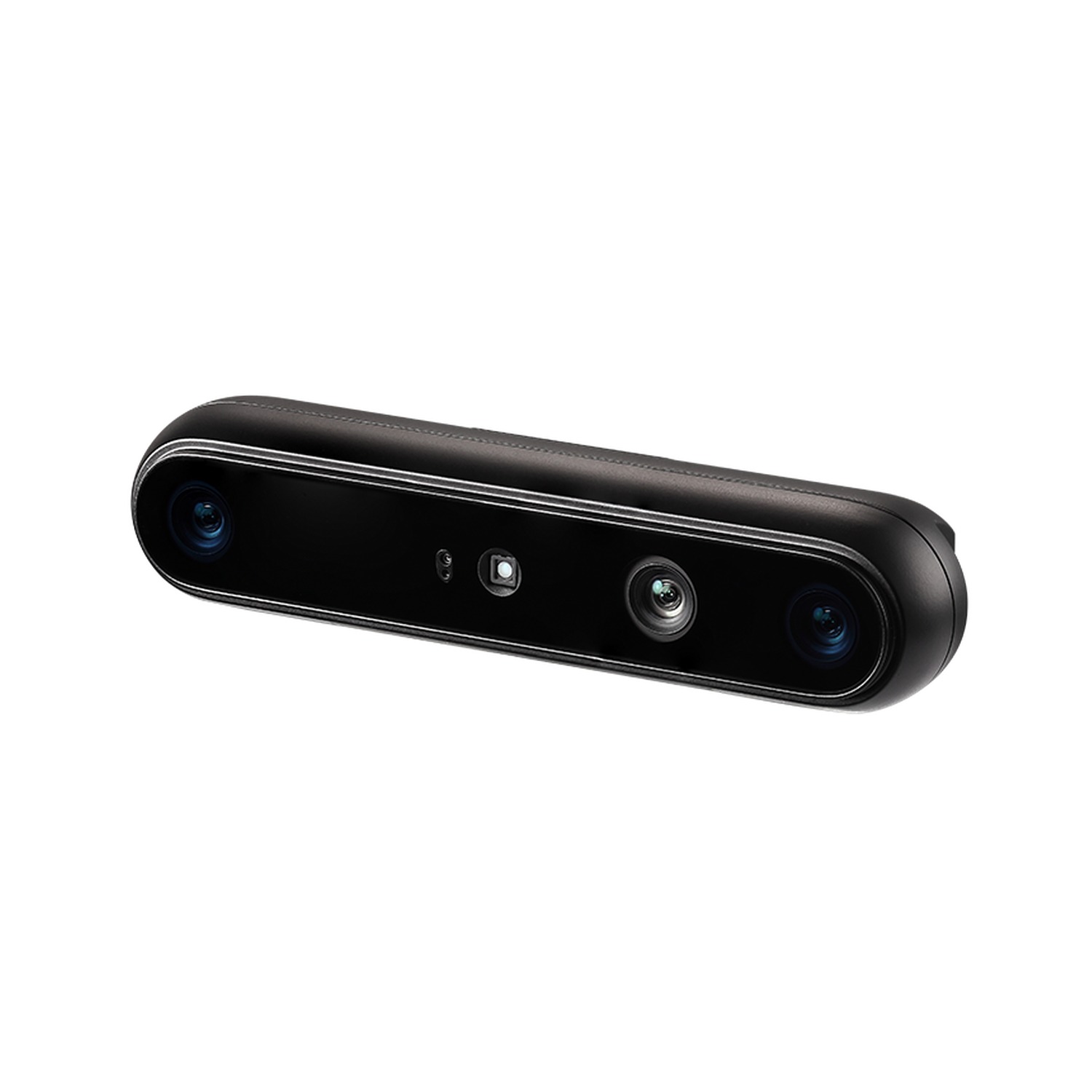

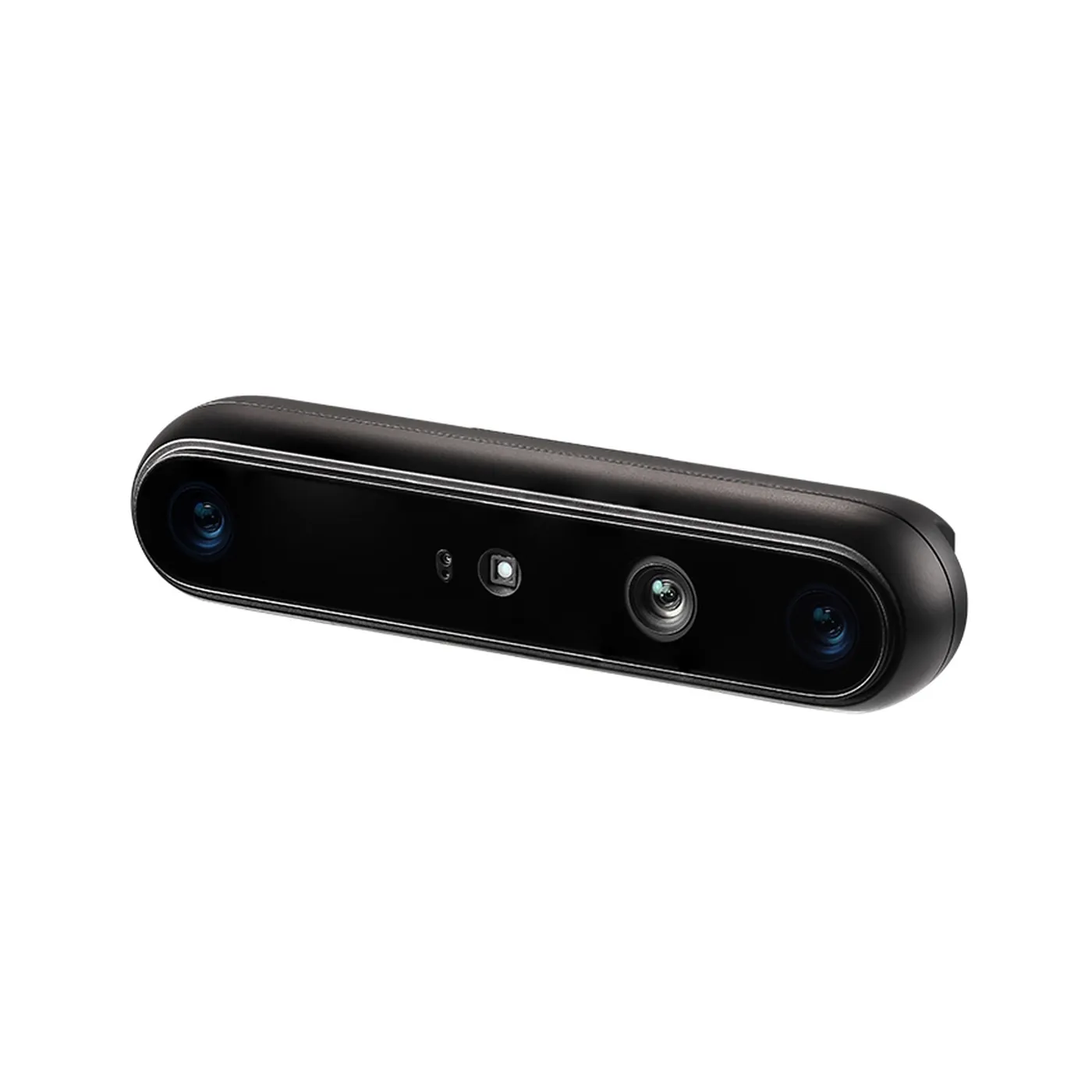

Orbbec Gemini 335L All-Scenario Stereo 3D Camera

Vendor: Orbbec

Product: Gemini 335L

Orbbec Gemini 335L All-Scenario Stereo 3D Camera

New-generation all-scenario stereo 3D camera in the Gemini 330 series, built on Orbbec's in-house MX6800 depth engine with an active-passive fused imaging system for indoor and outdoor use under sunlight, rated IP65. Recommended range 0.25-6 m, depth up to 1280x800@30fps with global shutter, USB 3.0 Type-C power and data in a 133 g body, for robots, AMR, industrial and outdoor applications.

Imu	with support for
Rgb	1280 × 800 @ 60 fps，94° × 68°
Power	DC 5 V ≥ 1.5 A < 3 W
Weight	133 g
Baseline	95 mm
Depth Fov	90° × 65° @ 2 m
Interface	USB 3.0 Type-C（UVC） 8-pin
Dimensions	124 × 29 × 27 mm
Ingress Rating	IP65
Operating Temp	-10–50 ℃
Depth Technology	MX6800
Recommended Range	0.25–6 m（ 0.17–20 m+）
Depth Resolution Fps	1280 × 800 @ 30 fps

3D Vision Depth cameras Binocular vision Orbbec Gemini 335L Robot vision
