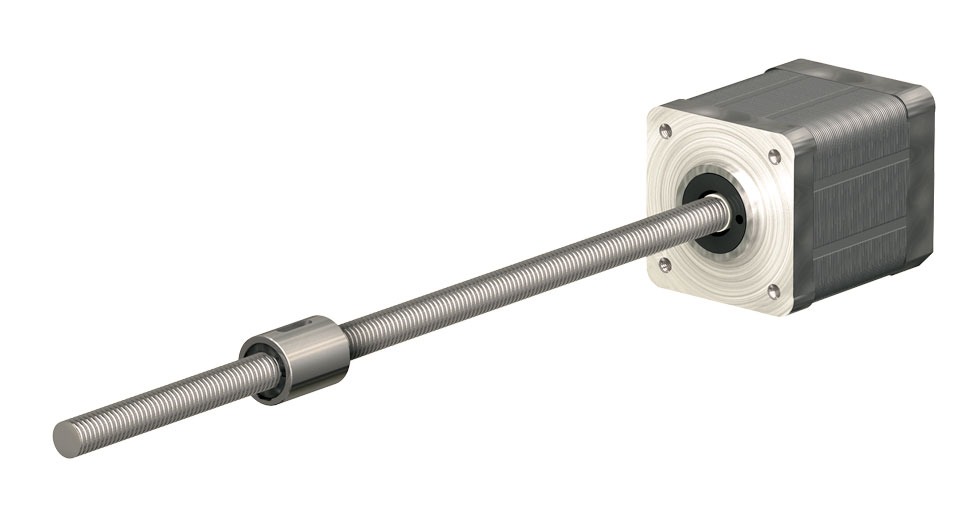

Ball Screw Linear Actuator 6mmx1mmx250mm NEMA 11 Motor, Cylindrical Nut BSR0601ATXR-0250-CNS-111-NNN-N
Vendor: PBC Linear (USA)
Product: Ball Screw Linear Actuator 6mmx1mmx250mm NEMA 11 Motor, Cyli
Miniature ball-screw linear actuator: 6 mm screw, 1 mm lead, 250 mm travel, cylindrical nut, NEMA 11 (23 mm) motor interface, 0.05 mm standard backlash, approx. 1 lbs.
| Lead | 1 mm |
| Travel | 250 mm |
| Backlash | 0.05 mm (standard) |
| Nut Style | Cylindrical nut |
| Approx. Weight | 1 lbs |
| Screw Diameter | 6 mm |
| Body Dimensions | 9.96 x 1.11 x 1.31 in |
| Motor Interface | NEMA 11 (23 mm) |
