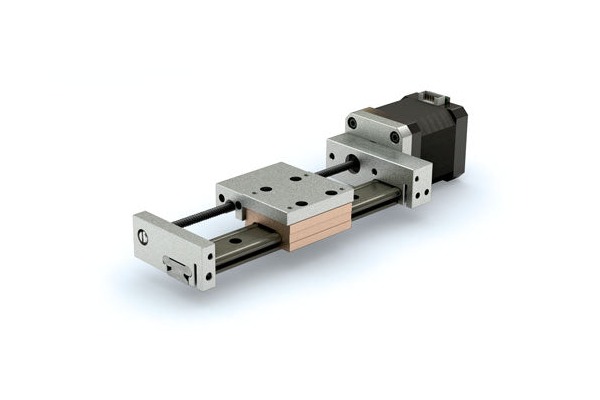

Lead Screw Compact Linear Slide Actuator CSMR15D-000-0080-3A1-AGXR2-0 NEMA 17 Motor - Length: 80mm
Vendor: PBC Linear (USA)
Product: Lead Screw Compact Linear Slide Actuator CSMR15D-000-0080-3A
Compact lead screw slide actuator, 80 mm rail with 23 mm low profile, 10 mm screw and 2 mm lead, Constant Force anti-backlash nut, NEMA 17 single-stack motor, GST FrelonGold gliding surface, 240 N max horizontal load, approx. 1.46 lbs.
| Motor | NEMA 17 single stack |
| Screw Lead | 2 mm |
| Rail Length | 80 mm |
| Approx. Weight | 1.46 lbs |
| Profile Height | 23 mm |
| Screw Diameter | 10 mm |
| Max Horizontal Load | 240 N |
