Lead screw assembly 10 mm x 5 mm lead x 254 mm with round Constant Force anti-backlash nut.
COMPONENT
Lead screw assembly 6 mm x 1 mm lead x 254 mm with rectangle Constant Force anti-backlash nut.
Non-captive lead screw actuator, NEMA 14; 6 mm screw, 1 mm lead, 200 mm long, 0.003 in/ft accuracy.
Non-captive lead screw actuator, NEMA 11; 3/16 in screw, 0.05 in lead, 8 in length, 0.003 in/ft lead accuracy.

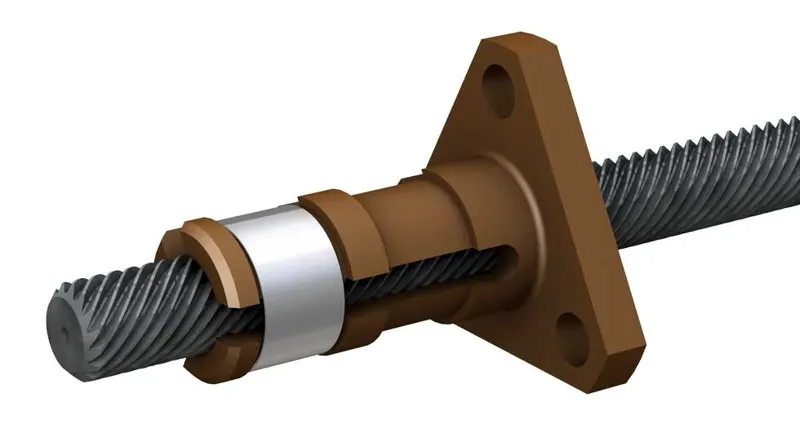

12 mm x 1 mm lead stainless lead screw, 254 mm long, precision-rolled 300 series stainless with PTFE coating and triangular anti-backlash nut; lead accuracy 0.003 in/ft.
Compact lead screw slide actuator, 80 mm rail with 23 mm low profile, 10 mm screw and 2 mm lead, Constant Force anti-backlash nut, NEMA 17 single-stack motor, GST FrelonGold gliding surface, 240 N max horizontal load, approx. 1.46 lbs.
Compact ball-screw slide actuator with 200 mm rail, 23 mm low profile, 6 mm screw and 2 mm lead. Constant-force anti-backlash nut, 135 mm max stroke and 5590 N max horizontal load.
