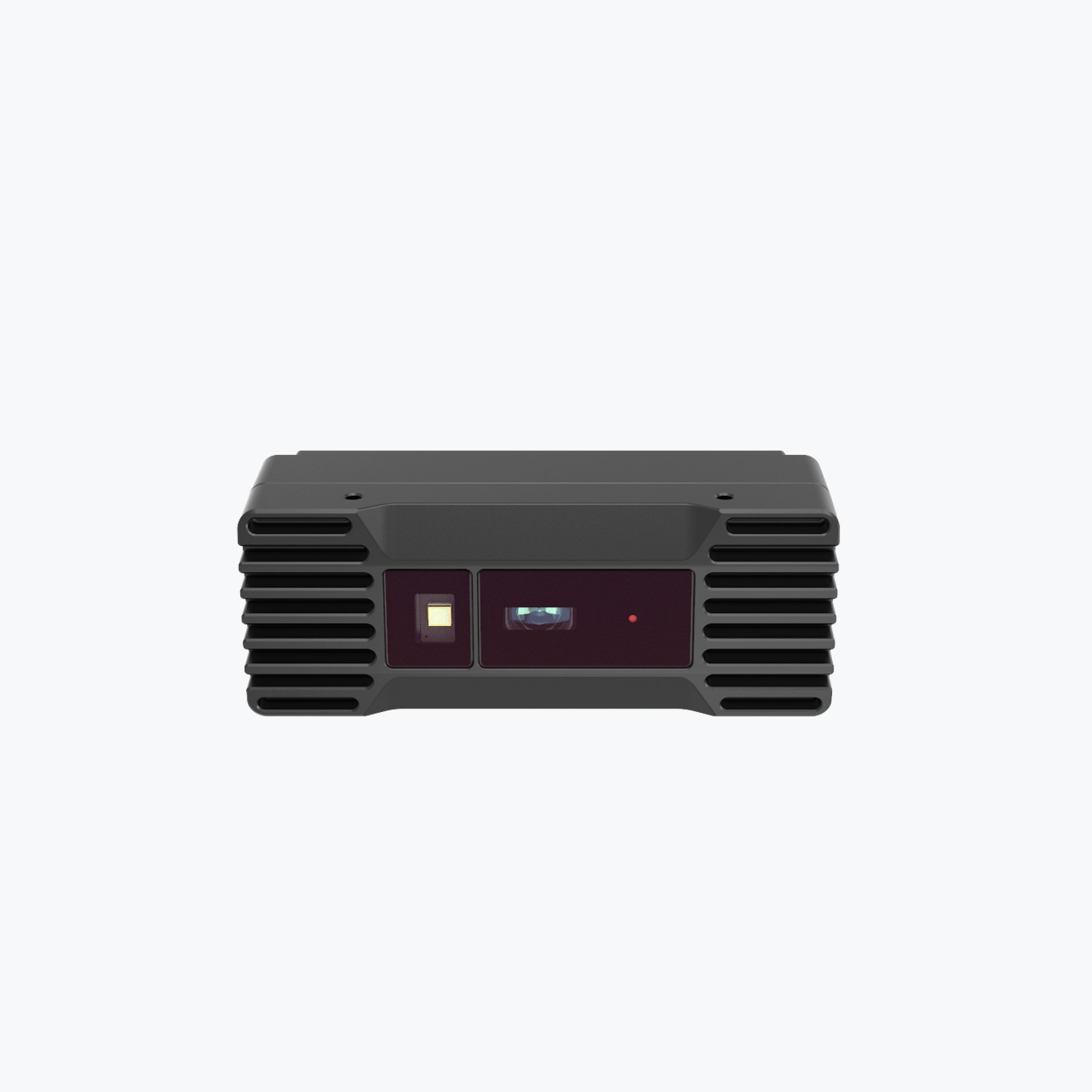

Percipio TM262-E1 dToF Depth Camera

Vendor: Percipio

Product: TM262-E1 dToF

Percipio TM262-E1 industrial dToF ranging depth camera: 940 nm IR laser, 120°/50° ultra-wide FOV, 0.05-8 m working range, up to 240x96 @25 fps depth, Z accuracy 6 mm @1 m / 15 mm @2.5 m, 55 ms latency, 100 Mbps Ethernet over M12 aviation connector, IP65, aluminum passive cooling, 90x34x30 mm / 130 g, <4 W, DC 24V, Linux/Windows/ROS with Vcamera/Camport4 SDK; sunlight-resistant for indoor/outdoor AMR navigation, obstacle avoidance and ranging.

Fov	120° H / 50° V
SDK	Vcamera SDK (C++/C#/Python), Camport4 SDK; Linux/Windows/ROS
Power	<4 W, DC 24V +/-20%
Weight	130 g
Latency	55 ms
Interface	100 Mbps Ethernet, M12 A-code 8-pin
Principle	dToF, 940 nm IR laser
Dimensions	90x34x30 mm
Z Accuracy	6 mm @1 m, 15 mm @2.5 m
Xy Accuracy	10 mm @1 m, 25 mm @2.5 m
Working Range	0.05-8 m (recommended 0.3-3 m)
Depth Resolution	240x96 @25 fps (max)
Ingress Protection	IP65

Depth cameras dToF 3D Vision Tuyang Technology Navigation and obstacle avoidance

https://www.percipio.xyz
