Tolomatic (USA) IMA is an integrated servo linear actuator that combines a brushless servo motor, ball or roller screw and servo drive in one housing - no coupling or external drive, minimal cabling and easy multi-axis synchronization; four frame sizes IMA22/33/44/55 deliver 1.5-35.8 kN (325-8044 lbf) peak force with strokes to 457 mm (18 in), speeds up to 1334 mm/s (52.5 in/s) and multiple lead choices at 0.0021 in/ft lead accuracy for factory automation, packaging, molding and humanoid linear joints.
Haydon Kerk Pittman (AMETEK) can-stack linear stepper actuators use a low-cost can-stack stepper driving a lead screw for compact, cost-effective linear motion in Captive and Non-Captive/External forms. Diameters span 15–36 mm (0.59–1.4 in), 6–100 µm travel per step, 3–260 N max force, 12.7–38.1 mm captive stroke and up to 150 mm non-captive/external stroke, suited to instrumentation, valve control and space-constrained automation.
Haydon Kerk Pittman (AMETEK) hybrid stepper linear actuators convert hybrid stepper rotation into linear motion via a stainless-steel precision modified ACME lead screw / direct-drive rotor nut, in Captive, Non-Captive and External configurations. Range spans Size 6–Size 34 (16–87 mm frame), 1.5–127 µm travel per step, 2–2224 N max force, 12.7–63.5 mm captive stroke and up to 400–500 mm non-captive/external stroke, for medical, semiconductor and lab-automation precision positioning.
Tecnotion (Netherlands) QTR 160 is the largest frame of the QTR frameless direct-drive torque motor family: 160 mm stator OD, 108-111 mm hollow rotor ID, six models with 17-140 mm stacks (QTR-A-160-17/25/34/60/114 and QTR-X-160-140); continuous torque 4.1-103.9 Nm, peak 6.2-155.3 Nm, ultimate 9.3-244.8 Nm, up to 4000 rpm and torque constants 0.31-9.24 Nm/Arms - a high torque-density fit for humanoid hip/knee joints and heavy direct-drive rotary tables.
LinMot (Switzerland) P01/P10 tubular direct-drive linear motors: P01-23/37/48 and P10-54/70 families with peak forces 86.4-2,720 N, sustained forces 24-890 N and strokes to 1,710 mm; stainless (S), high-performance (HP) and functional-safety variants, wear-free and maintenance-free, MagSpring gravity compensation for vertical axes - used in packaging, filling, semiconductor and pneumatic-replacement applications.
Tecnotion (Netherlands) QTR 105 frameless direct-drive torque motors: 105 mm OD with flat stacks from just 17 mm and a large inner diameter for easy integration in medical and precision rotary tables; continuous torque 1.4-12.0 Nm, peak 1.9-18.1 Nm, ultimate 3.0-28.4 Nm, optional winding variants and digital hall sensors; the QTR family spans frame sizes 65/78/105/133/160 for semiconductor, printing and rotary direct-drive applications.
NSK Megatorque Motor PS/PN series are hollow-shaft direct-drive motors (OD φ150/φ280 mm) with 5/45 N·m rated and 15/135 N·m peak torque, φ56/φ50 mm hollow bore, built-in absolute position sensor at 4,194,304 counts/rev, absolute positioning accuracy 60 arc-sec (±30) and ±2 arc-sec repeatability; paired with EGC (EtherCAT) / ECC drivers for high-speed multi-axis synchronous control in semiconductor, inspection and precision indexing applications.
Tolomatic RSX Extreme Force series are high-force electric rod actuators in six sizes RSX10-RSX50 delivering up to 100,000 lbf (445 kN) thrust, 1,500 mm stroke and 760 mm/s speed; roller-screw (RN) and ball-screw (BN) options with dynamic load ratings to 187,940 lbf, lead accuracy 0.0004 in/ft and backlash 0.0012 in - built for pressing, stamping, servo-press and hydraulic-to-electric conversion applications.
Tolomatic (USA) RSA series are servo-driven electric rod-style actuators in six frame sizes RSA12-RSA64 with strokes to 1,524 mm (60 in), forces to 13,039 lbf (58 kN) and speeds to 3,120 mm/s; ball- and roller-screw lead options, integrated servo motor/drive sizing, IP65 rating and broad mounting accessories - a precision, energy-efficient replacement for hydraulic and pneumatic cylinders in automotive, tire, packaging and material-handling lines.
FAULHABER (Germany) linear actuators convert coreless DC / brushless rotary motion into linear travel via precision lead or recirculating ball screw nuts: 06L (6 mm dia, 3-25 N continuous axial force), 08L (8 mm, 4-40 N) and 10L (10 mm, 5-200 N; high-load HL version 100-200 N), with reduction ratios 4-1024; trapezoidal lead screw and ball screw nut options (ball version for higher speed/efficiency), custom stroke and length, paired with 0308-1028 DC/BL micro motors (up to 90,000 r/min) and planetary/spur gearheads (i 4-4096, zero-backlash versions), used in robotics, laboratory automation, medical and optical positioning.

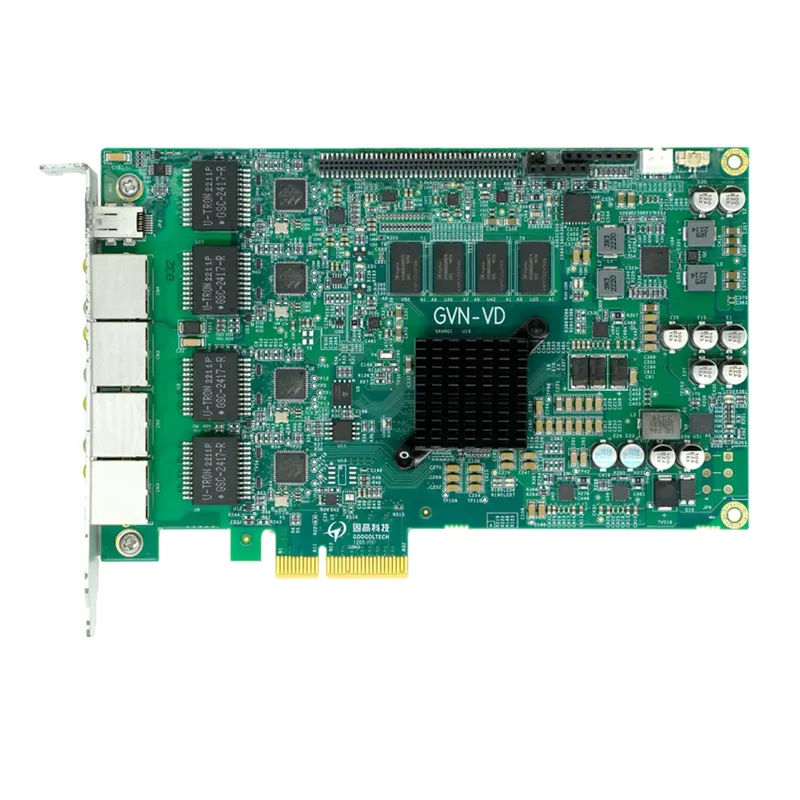

Googol Tech (SZ 301510) GVN series plug-in high-performance networked motion controller built on a multi-core processor, supporting high-speed gLink-II, general gLink-II and EtherCAT; high-speed gLink-II closes the loop on 8 axes at a 50 us cycle with built-in position/velocity loops plus feedforward and filtering algorithms, while general gLink-II/EtherCAT scale to 256 axes with position compare, PSO and laser galvo control and standard EtherCAT peripheral compatibility; targeting semiconductor, laser processing, PCB drilling/milling, robotics and CNC machines.

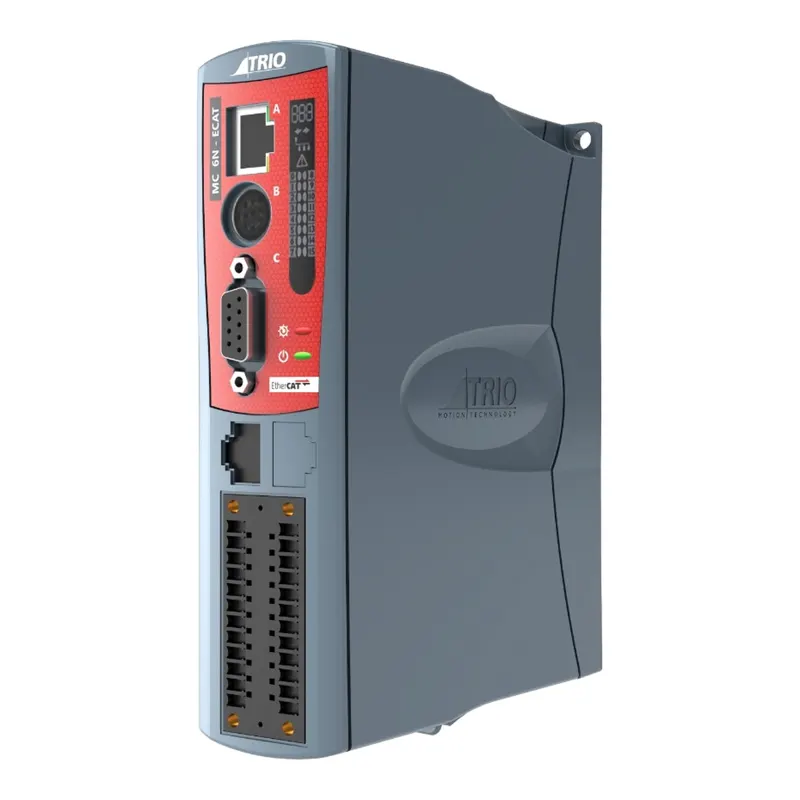

Estun (SZ 002747) MC6N series EtherCAT motion controller built on Trio technology, P960-P965 covering 2-64 axes with a 1 GHz dual-core Cortex-A7, 128 MB DDR3 plus 128 MB NOR Flash, TrioBASIC and IEC 61131-3 programming, Biss/EnDAT/SSI absolute encoder interfaces and 4 high-speed color-mark inputs; aimed at multi-axis humanoid joint coordination and high-precision line motion control.
