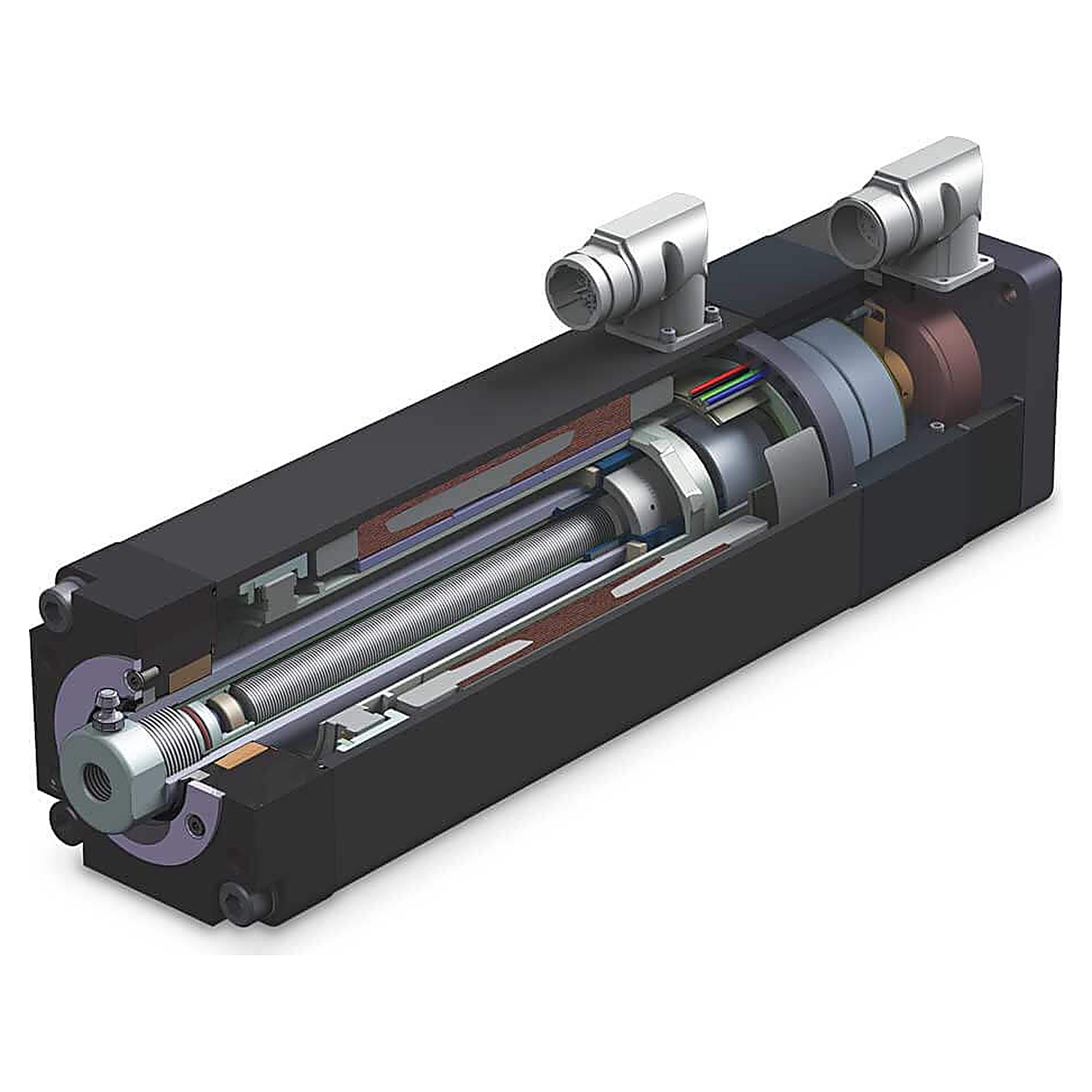

Tolomatic IMA Integrated Servo Linear Actuators (1.5-35.8 kN)
Vendor: Tolomatic (USA)
Product: IMA 一体化伺服电动缸
Tolomatic (USA) IMA is an integrated servo linear actuator that combines a brushless servo motor, ball or roller screw and servo drive in one housing - no coupling or external drive, minimal cabling and easy multi-axis synchronization; four frame sizes IMA22/33/44/55 deliver 1.5-35.8 kN (325-8044 lbf) peak force with strokes to 457 mm (18 in), speeds up to 1334 mm/s (52.5 in/s) and multiple lead choices at 0.0021 in/ft lead accuracy for factory automation, packaging, molding and humanoid linear joints.
| max_force | 1.5-35.8 kN (325-8044 lbf) |
| max_speed | up to 1334 mm/s (52.5 in/s) |
| max_stroke | up to 457 mm (18 in) |
| frame_sizes | IMA22 / IMA33 / IMA44 / IMA55 |
| integration | servo motor + screw + drive in one unit |
| screw_types | ball screw (BN) & roller nut (RN) options |
| lead_accuracy | 0.0021-0.004 in/ft |
