Round flanged sleeve bearing, 6mm ID, 10mm OD and 6mm length with a closed lightweight aluminum alloy shell. This Simplicity® plain bushing supports linear, rotational, and oscillating motion with a bonded, self-lubricating FrelonGOLD® liner that eliminates grease and reduces maintenance in harsh operating conditions.
3/4" diameter precision case hardened and ground steel shaft, with a matching 12" length low profile LSR steel support rail. This assembly comes as a two-piece set with a separate shaft and support rail. You can bolt the shaft to the rail to save installation time. The shaft's lifespan can be doubled by rotating it for a fresh surface when wear appears.
Low profile linear slide rail, 17mm wide, 6mm high and 100mm long, for Mini-Rail miniature linear guides, compatible with LPM17C carriages. Anodized aluminum construction with Gliding Surface Technology™ (GST) provides maintenance-free, low-friction linear motion with ≤0.5mm running clearance.
Solid Linear Shaft of Ceramic Coated Aluminum, 6mm diameter, 150mm length. This feather-weight yet strong shaft boasts RC70 hardness, superior corrosion resistance, non-magnetic properties, vibration resistance, and immunity to weld splatter, paints, and contaminants.
Pre-Drilled Linear Shaft made of 1060 Carbon Steel with a 1/2" diameter and 4" length, rated Class L to represent the highest Precision Tolerance and Standards Compliance. Made in the USA by PBC Linear® as RC 60 Plus™ case-hardened steel, the shaft is pre-drilled with industry standard 4 inch spacing beginning 2 inches from the end. Click "Configure and Quote" below to order custom lengths and end-tapping.
Ceramic Coated Aluminum Linear Shaft with a 5/8" diameter and 12" length, fused onto an Aluminum Alloy Linear Rail. The shaft is feather-weight yet strong, boasting RC70 hardness, superior corrosion resistance, non-magnetic properties, vibration resistance, and immunity to splatter, paints, and contaminants. Use open bearing variants of Simplicity® self-lubricating plain slide linear bearings and other plain bearings.
Lead Screw Driven Linear Actuator including a NEMA 17 motor mount. This actuator utilizes a Gliding Surface Technology™ (GST) carriage with a self-lubricating FrelonGold® underliner on a 140mm length rail with a tall profile. It features a 2mm screw lead and an anti-backlash screw nut. GST carriage with self-lubricating FrelonGold® liner Lead screw driven with 2mm screw lead Anti-backlash screw nut NEMA 17 motor mount

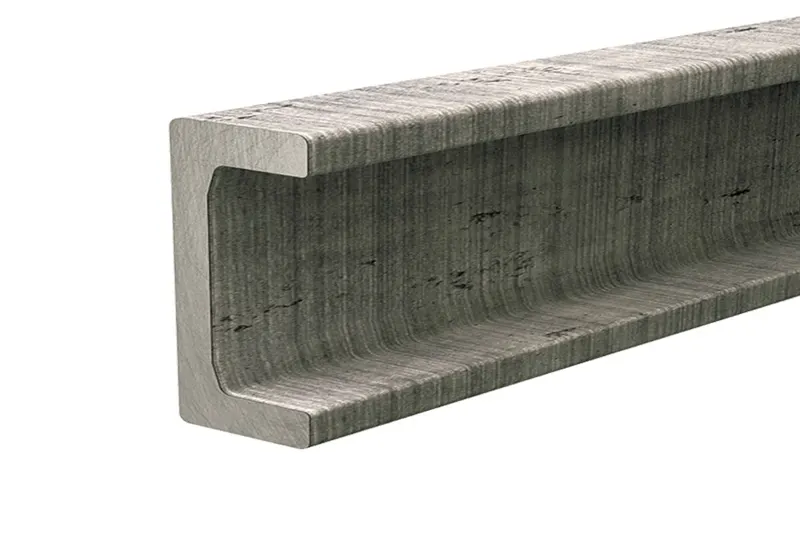

U-Channel Heavy Duty Linear Rail made of steel and 1000mm long, for roller bearings HVB-054 and HVBEA-454 (eccentric adjustable) of the Hevi-Rail linear guide system. The material composition of the rail is 18MnNb6 ferritic steel (yield: 430 N/mm², tensile: 550-770 N/mm², Brinell hardness: 160-210).
Linear Shaft of hardened carbon steel, 4mm diameter, 150mm length, made in the USA by PBC Linear® as Simplicity® 60 Plus steel. Featuring an optimized surface finish that enhances the performance of linear bearings such as self-lubricating plain bearings, ball bearings, roller bearing pillow blocks, and guide carriages. Solid, not pre-drilled. Neither drilled nor tapped - pre-drilled shafts are NIPDM (metric) or NIPDL (inch) Order custom lengths, tapping and hole spacing via
Ball Screw Linear Actuator with a Grade 10 Ball Screw of 6mm diameter, 1mm lead and 150mm length. This is a key part of our miniature metric ball screw motor series. Ideal for small-scale, high-precision applications, this model combines sleek design with robust functionality, featuring a cylindrical-style nut and compatibility with NEMA 08 motors. Miniature metric ball screw motor. Diameter: 6 mm; Lead: 1 mm; Length: 150 mm. Compatible with NEMA 08 motor. Cylindrical-style
Rear mount industrial drawer slide with a 28mm width and 148mm maximum stroke for heavy-duty, load-supported full extension beyond the mounting structure. Built from hardened, zinc-plated steel with precision ball guidance, the SDB Back Mount Series delivers smooth motion, corrosion resistance, and reliable support throughout full-extension travel. The internal rail can also be configured to move in both directions, adding flexibility for trays, digital panels, storage bins,
Face mount industrial drawer slide, size 28, 130mm rail, 148mm maximum stroke. The full-extension, heavy-duty SDF design is built from hardened steel SDP rail components, with size 28 referring to the nominal 28mm width of each component rail. The assembled SDF slide mounts from the front and provides long-travel telescoping motion in a dust-resistant configuration for machinery, service panels, equipment access, and other industrial applications. Zinc-plated steel constructi
