#Integrated servo (5)

ClearPath-EC - Servo motors with EtherCAT interface

EtherCAT networked integrated servo: motor, high-res encoder, drive and controller in one package; NEMA 23/34, 13-478 oz-in cont. torque, 38-429 W cont. power, up to 1,584 W peak, 24-75 VDC / 100-240 VAC.

COMPONENT

Integrated servoServo motorsEtherCATIndustrial BusActuators

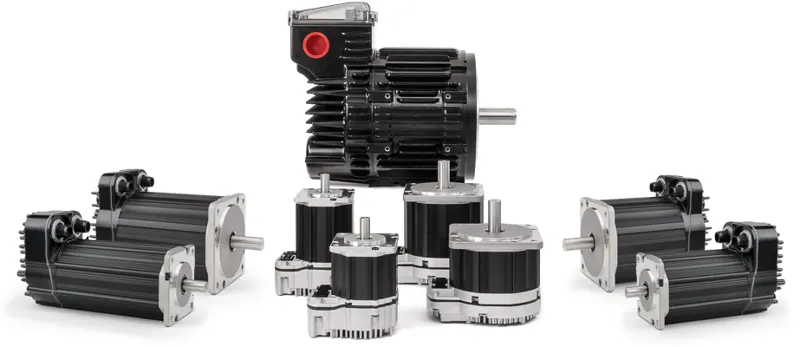

ClearPath-IP - Servo motors with EtherNet/IP interface

EtherNet/IP networked integrated servo: motor, encoder, drive and controller in one package; NEMA 23-143, 13-1,890 oz-in cont. torque, 38 W-4.0 hp cont. power, up to 7.74 hp peak, 24-75 VDC / 100-240 VAC.

COMPONENT

Integrated servoServo motorsEtherNet/IPIndustrial BusActuators

ClearPath-MC - Servo motors; built-in encoder+controls; auto-tune

Multi-mode integrated servo with built-in encoder and controller: 7 velocity/torque modes plus 6 positioning modes; NEMA 23-143, 13-1,890 oz-in cont. torque, 38 W-4.0 hp, 24-75 VDC / 100-240 VAC input.

COMPONENT

Integrated servoServo motorsMultimodal ControlActuators

ClearPath-SC - Servo motors; built-in drive/controls

Software-commanded integrated servo: built-in drive/controls programmed via API; NEMA 23-143 frames, 13-1,890 oz-in cont. torque, 38 W-4.0 hp cont. power, up to 7.74 hp peak, 24-75 VDC / 100-240 VAC input.

COMPONENT

Integrated servoServo motorsSoftware ControlActuators

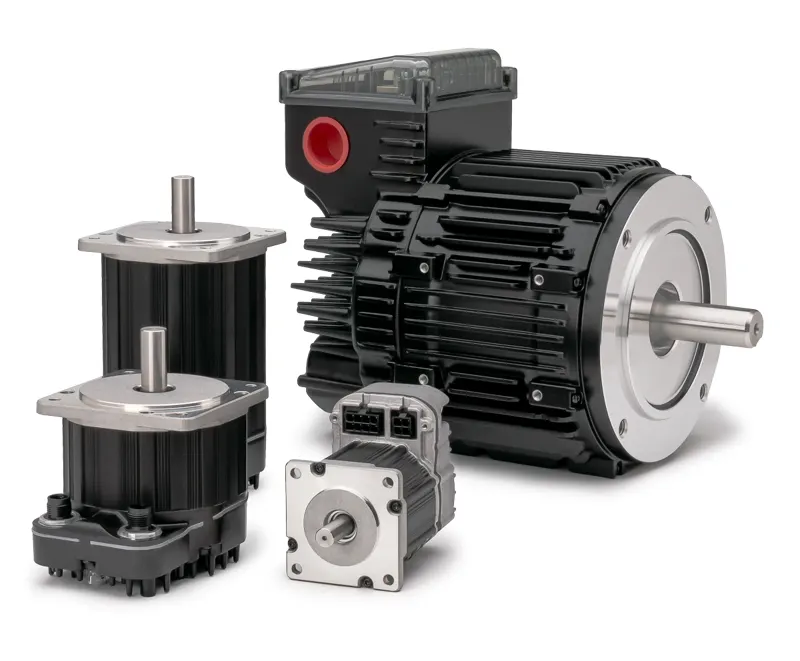

ClearPath-SD - Integrated servo replaces NEMA 23, 34 steppers

Integrated servo with step & direction interface: brushless motor, encoder, drive and controller in one package; NEMA 23-143 frames, 13-1,890 oz-in cont. torque, 38 W-4.0 hp cont. power, up to 7.74 hp peak.

COMPONENT

Integrated servoServo motorsStepper ReplacementActuators
