Linear Rail, 28 mm wide and 250 mm long, from the Steel Rail Plus series of linear guides, features a U-shaped polished, steel body. Designed for compact setups in automation and robotics, it includes pre-drilled mounting holes every 80 mm and is compatible with SRP28 carriages.
COMPONENT
Uni-Glide linear slide 48 in with hand brake, 125 mm carriage, FrelonGold liner, 1000 lb static.
Low profile Redi-Rail 34 mm x 500 mm, aluminum with hardened steel raceways; pairs with RRL34C-A2.
Commercial roll-formed steel rail 20 mm x 250 mm, zinc plated; pairs with CR20MCA 3-roller carriage.
Solid Linear Support Rail of 360mm length, made to hold a 12mm diameter linear shaft that uses open style bearings. Crafted of cold stamped aluminum, this rail is undrilled but matching pre-drilled variants have PD part numbers.
CPC AR35N wide linear guideway rail, 34 mm width, 250 mm length, 3.74 lbs, four-way equal load.

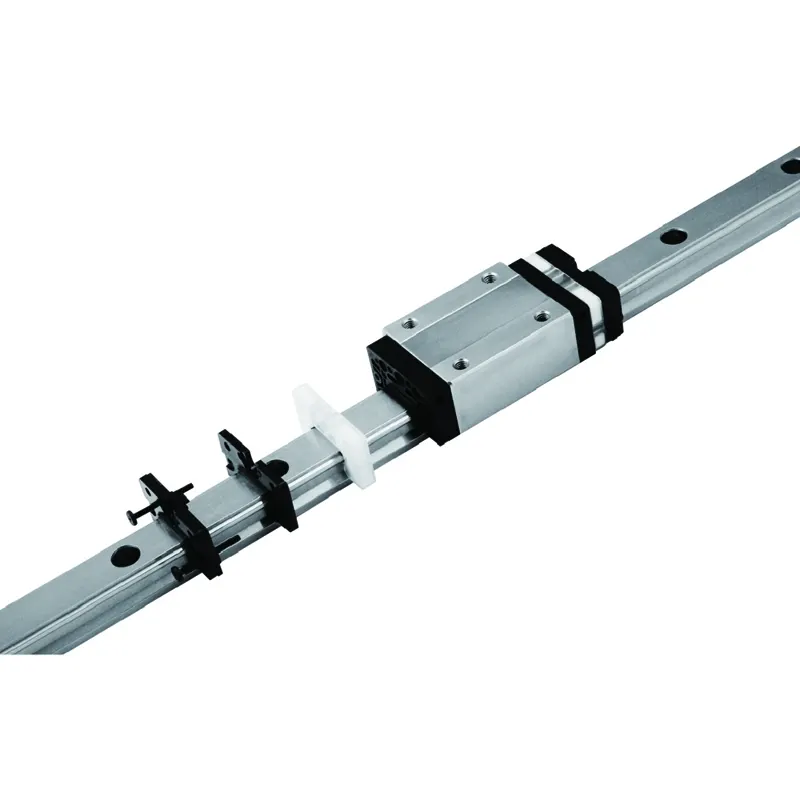

TBI Motion TR15N narrow linear guideway, 15 mm rail width, 13 mm assembly height, 100 mm rail, four-way equal load.
