Lead Screw with a Triangular Anti-Backlash Nut featuring a 10mm diameter, 1mm lead, and a length of 254mm, made from precision-rolled 300 Series Stainless Steel and coated with PTFE to prevent flaking. The Triangular Constant Force™ Anti-Backlash nut uses a spring to maintain uniform radial pressure, reducing backlash by 2-4 times over its lifespan.
COMPONENT
TBI Motion TR15N narrow linear guideway, 15 mm rail width, 13 mm assembly height, 100 mm rail, four-way equal load.
TBI Motion TRS15 linear guide, C=8.9 kN, C0=14.4 kN, Mx=107.45 Nm.
BSC-AAM ball screw assembly, 6 mm dia, 1 mm lead, 250 mm travel, Ca=111 N.
Ultra-flat cup-shaped strain wave gear series with ratios 50-160, rated torque 3.7-16 N·m and backlash within 10 arcsec for space-constrained robot joints.

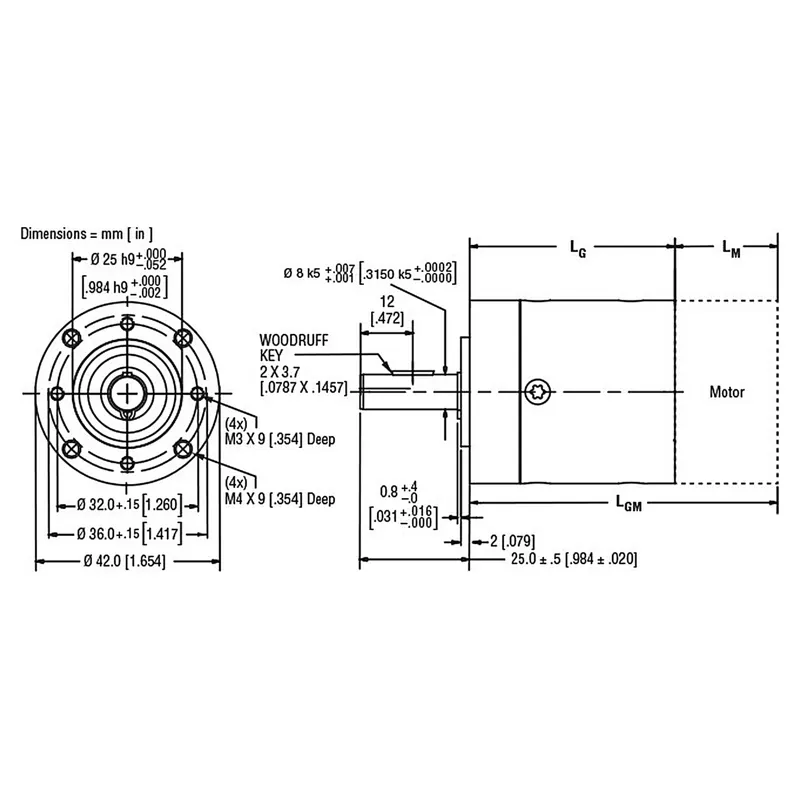

Haydon Kerk Pittman (AMETEK, USA) PLG42S is a 42 mm planetary gearbox covering ratios 4:1-512:1 in 1-3 stages: max load 3.5-14 Nm (496-1,983 oz-in), stage efficiency 90%/81%/73%, weight 270-880 g and length 47.6-71.2 mm with CW output; pairable with DC040B and other motors as gearmotors for robot joints, medical devices and precision automation.

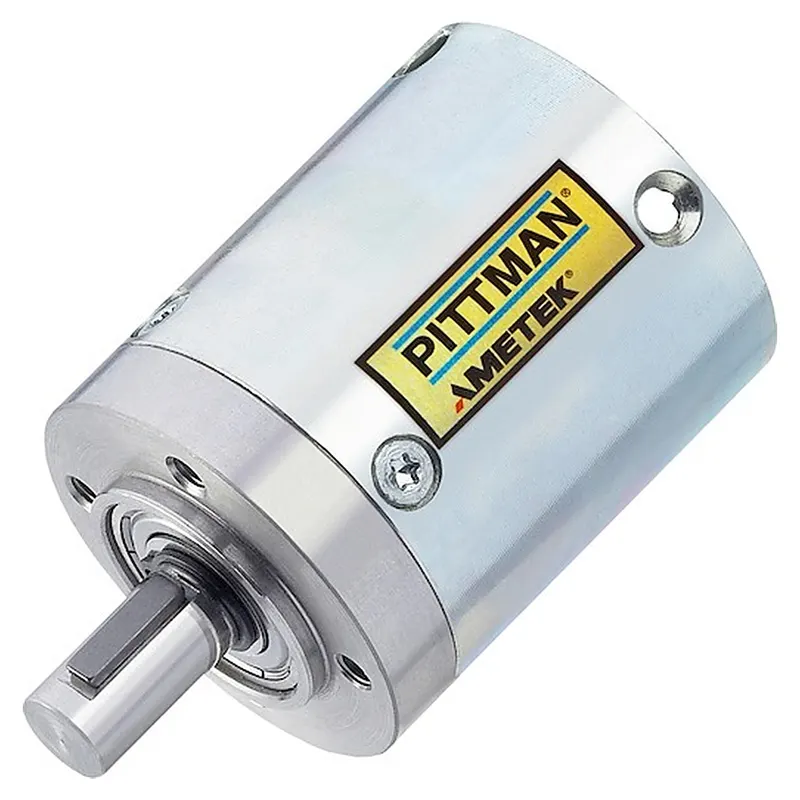

Haydon Kerk Pittman (AMETEK, USA) Pittman PLG52 is a 52 mm-frame precision planetary gearbox with 13 standard ratios from 4.5:1 to 400:1 across 1-3 stages: single-stage torque to 1.2 Nm and two/three-stage to 24 Nm (3399 oz-in), efficiency of 0.90/0.81/0.73 by stage count, mass 560-880 g and length 50-80.5 mm; it couples directly to Pittman brushed/brushless DC and hybrid stepper motors for robot joints, medical devices and lab automation.

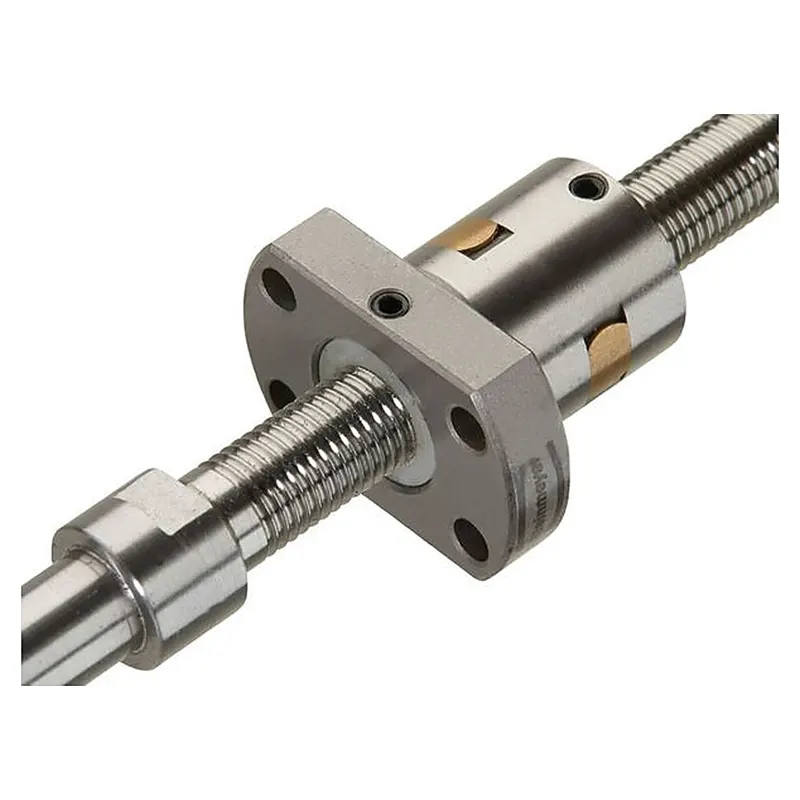

August Steinmeyer (Germany) 1412 miniature ball screws carry a single nut with integral mounting flange (flange OD Ø15-35 mm) for direct screw fixing to the load or carriage - reliable locating, easy assembly, backlash-free running at accuracy class P; the 59-model range spans Ø3-16 mm nominal diameters and 0.5-2.5 mm leads with dynamic capacities 0.09-2.9 kN, static 0.09-4.9 kN, ball diameters 0.6-1.5 mm and nominal strokes to 450 mm for medical, semiconductor and humanoid micro drives.

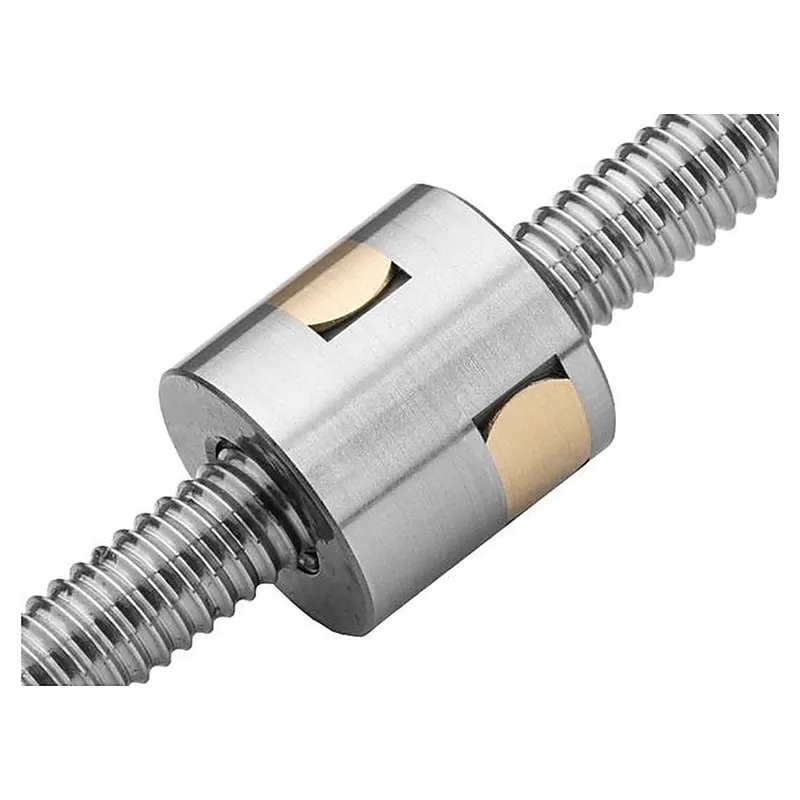

August Steinmeyer (Germany) 1214 miniature ball screws feature a cylindrical nut ground to h6 tolerance for press-fit or locating-ring installation into housing bores - compact, backlash-free and rated accuracy class P; the 59-model range spans Ø3-16 mm nominal diameters and 0.5-2.5 mm leads with dynamic capacities 0.09-2.9 kN, static 0.09-4.9 kN, ball diameters 0.6-1.5 mm and nominal strokes to 450 mm, a compact choice for space-constrained medical, semiconductor and humanoid micro linear drives.

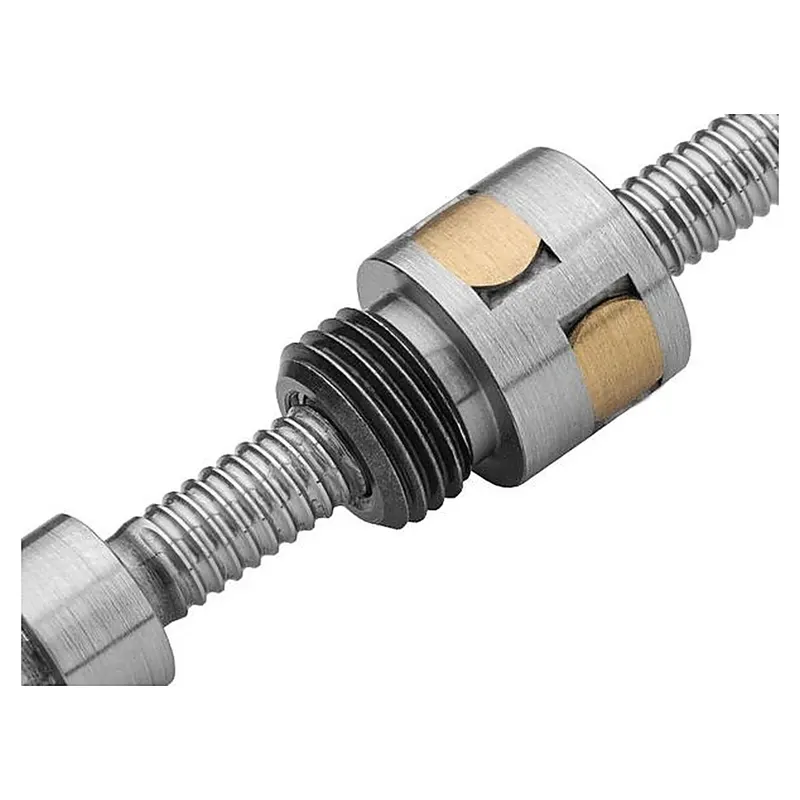

August Steinmeyer (Germany) 1112 miniature ball screws use a nut with integral connecting thread for direct screw-on attachment to drive shafts or load interfaces, running backlash-free at accuracy class P; the 59-model range spans Ø3-16 mm nominal diameters and 0.5-2.5 mm leads with dynamic capacities 0.09-2.9 kN, static 0.09-4.9 kN, ball diameters 0.6-1.5 mm and nominal strokes to 450 mm in two shaft styles - suited to medical, semiconductor and humanoid dexterous micro linear drives.

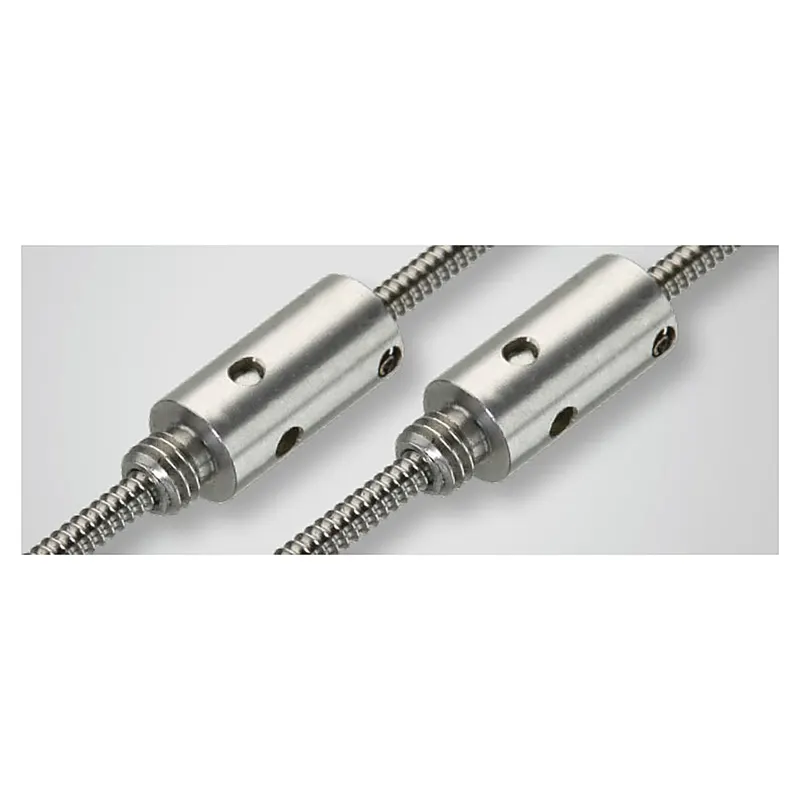

August Steinmeyer (Germany) 1510 is a spring-preloaded double-nut miniature ball screw with 2-point contact and internal ball return for backlash-free running at very low friction torque; the 89-model range spans Ø3-16 mm nominal diameters and 0.5-5 mm leads with dynamic capacities 0.09-2.5 kN, static 0.09-3.2 kN, ball diameters 0.6-2 mm and nominal strokes to 800 mm at accuracy class P - suited to medical, semiconductor and humanoid dexterous micro linear drives.
