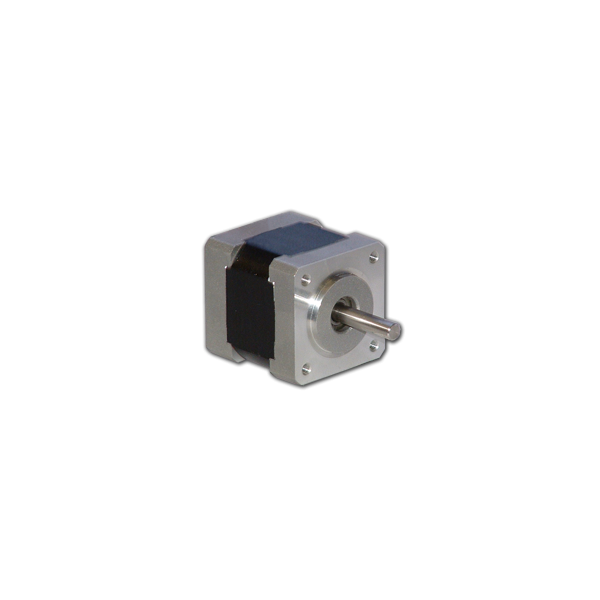

14Y102S NEMA 14 High-Torque Stepper Motor

Vendor: Anaheim Automation (USA)

Product: 14Y102S-LW4

14Y102S NEMA 14 High-Torque Stepper Motor

14Y102S-LW4 NEMA 14 high-torque stepper, 14 oz-in bipolar, 0.7 A, 4 leads, 1.1 in long.

ShaftSingle
Length1.1 in
Nema Size14
Lead Wires4
Rms Current0.7 A
Rms Voltage4.2 V
Bipolar Torque14 oz-in
Inductance Per Phase7.5 mH
Resistance Per Phase6 ohm
Stepper motorsNEMA 14High TorquePrecision positioning
anaheimautomation.com
