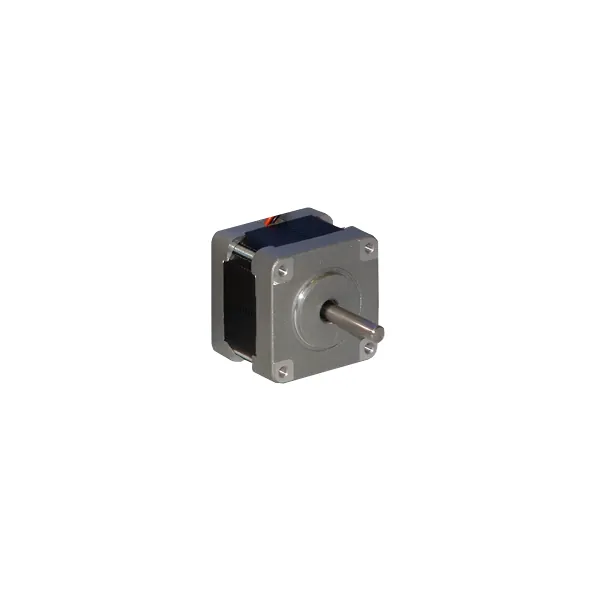

15Y102S NEMA 15 High-Torque Stepper Motor

Vendor: Anaheim Automation (USA)

Product: 15Y102S-LW4

15Y102S NEMA 15 High-Torque Stepper Motor

15Y102S-LW4 NEMA 15 high-torque stepper, 25 oz-in bipolar, 0.65 A, 4 leads, 1.34 in long.

ShaftSingle
Length1.34 in
Nema Size15
Lead Wires4
Rms Current0.65 A
Rms Voltage4.55 V
Bipolar Torque25 oz-in
Inductance Per Phase9.3 mH
Resistance Per Phase7 ohm
Stepper motorsNEMA 15High TorquePrecision positioning
anaheimautomation.com
