Size 34 Hybrid Stepper Linear Actuator | 87000 series Linear Actuator | Haydon Kerk
Vendor: Haydon Kerk Pittman / AMETEK (USA)

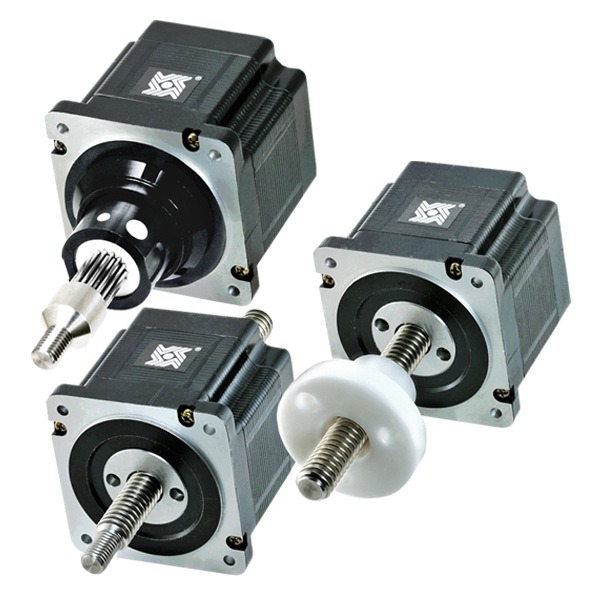

Product: Size 34 Hybrid Stepper Linear Actuator
The most powerful and largest stepper motor linear actuator is Haydon Kerk's 87000 series size 34 - delivers forces up to 500 lbs (2224 N) in a compact square package.
| 步距角 | 1.8° |
| 相电流 | 5.47 / 3.12 / 1.3 A rms |
| 最大推力 | 500 lb (2224 N) |
| 机座尺寸 | 87 mm |
| 结构形式 | 俘获式 / 非俘获式 / 外部直线式 |
| 绕组电压 | 2.85 / 5 / 12 VDC |
| 绝缘电阻 | 20 MΩ |
| 绝缘等级 | Class B (可选 Class F) |
| 转子惯量 | 1760 gcm² |
| 输入功率 | 31.2 W |
| 每步直线行程 | 12.7 – 63.5 µm (Ø15.88 mm 丝杠) |
