Size 11 Hybrid Stepper Linear Actuator | 28000 series Linear Actuators | Haydon Kerk
Vendor: Haydon Kerk Pittman / AMETEK (USA)

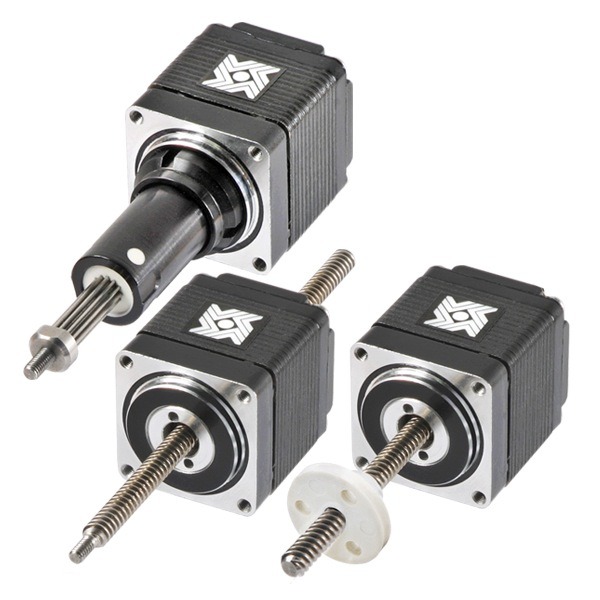

Product: Size 11 Hybrid Stepper Linear Actuator
Haydon Kerk's 28000 series size 11 stepper motor hybrid linear actuator delivers force of up to 20 lbs (90 N). Typical applications include medical equipment, semiconductor handling and valve control.
| 重量 | 119 g (4.2 oz) |
| 步距角 | 1.8° |
| 相电流 | 1.0 / 0.42 / 0.18 A rms |
| 最大推力 | 20 lb (90 N) |
| 机座尺寸 | 28 mm |
| 结构形式 | 俘获式 / 非俘获式 / 外部直线式 |
| 绕组电压 | 2.1 / 5 / 12 VDC |
| 绝缘电阻 | 20 MΩ |
| 绝缘等级 | Class B (可选 Class F) |
| 转子惯量 | 9 gcm² |
| 输入功率 | 4.2 W |
| 每步直线行程 | 3.1 – 50.8 µm |
